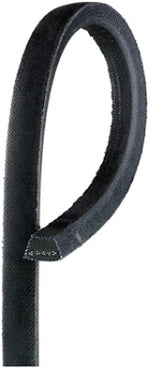

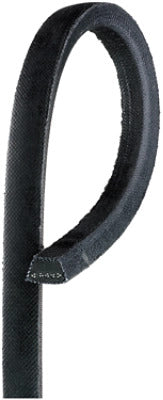

4L870
The 4L870 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 87" long, featuring oil and heat resistant rubber construction.
SKU: 1251460
$4.96
496
1089 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | 4L870 |
| Top Width | 0.5 in / 12.7 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 85.0 in / 2159.0 mm |
| Outside Length | 87.0 in / 2209.8 mm |
| Effective Length | 86.0 in |
| Min Sheave Diameter | 1.5 in / 38.1 mm |
Replaces These OEM Part Numbers (2)
This belt replaces the following OEM part numbers:
102607
106125
4L870
