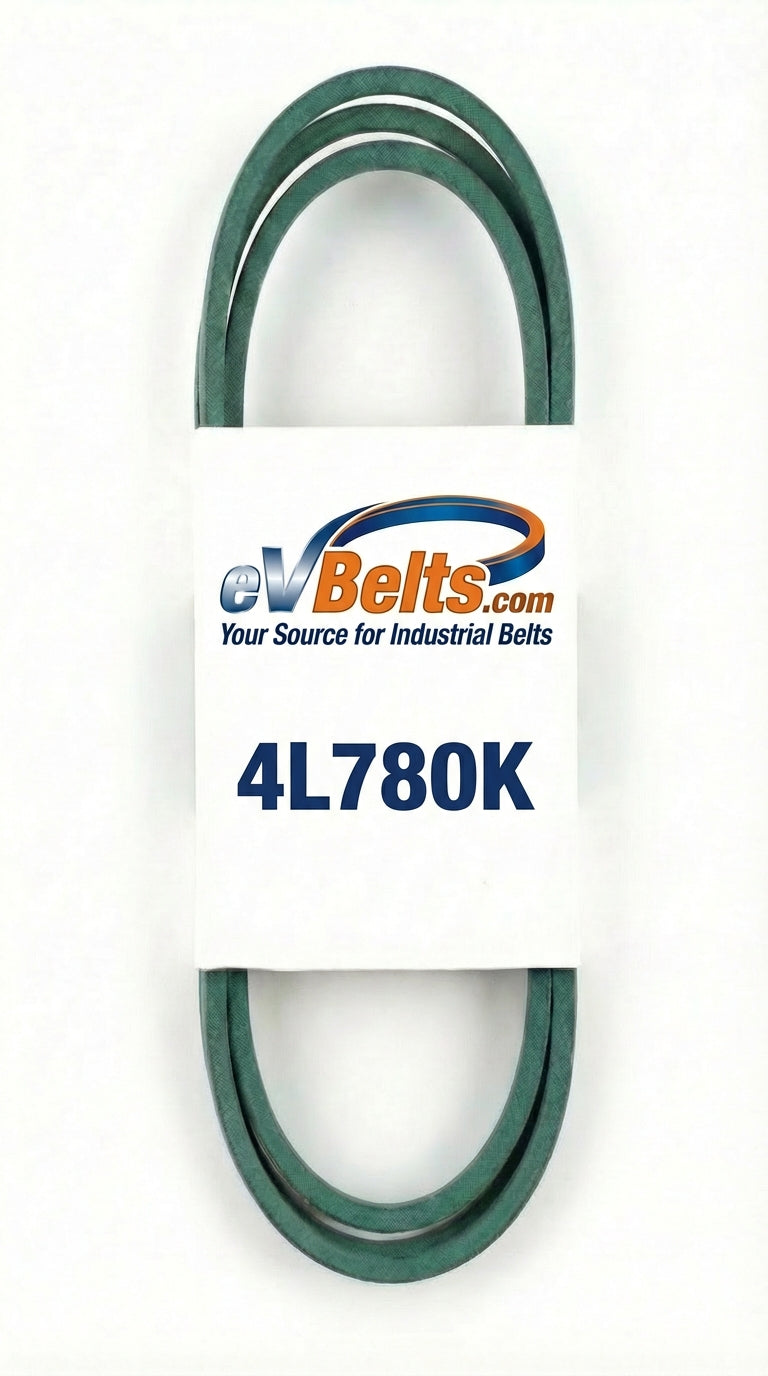

4L780K
The 4L780K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 78" long, featuring aramid fiber reinforced cords for superior tensile strength.
SKU: 1211370
$1.21
121
0 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | 4L780K |
| Top Width | 0.5 in / 12.7 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 76.0 in / 1930.4 mm |
| Outside Length | 78.0 in / 1981.2 mm |
| Effective Length | 77.0 in |
| Min Sheave Diameter | 1.5 in / 38.1 mm |
| Kevlar Reinforced | Yes |
Replaces These OEM Part Numbers (3)
This belt replaces the following OEM part numbers:
SEARS ROEBUCK 4798J
SEARS ROEBUCK 4866J
WHEEL HORSE 6489
