What belt replaces JOHN DEERE M122106?

The JOHN DEERE M122106 is replaced by the 4L690 V-belt. This is a direct dimensional replacement that fits JOHN DEERE equipment requiring the original M122106 belt.

What belt replaces LOCKE 3280?

The LOCKE 3280 is replaced by the 4L690 V-belt. This is a direct dimensional replacement that fits LOCKE equipment requiring the original 3280 belt.

sales@evbelts.com
+1 (888) 301-6840

+1 (888) 301-6840
sales@evbelts.com

	__ __
Vendor	Vendor - __
SKU	SKU - __
Description	Description - __
Customizable title	Customizable title - __
Variant name	Variant name - __
	View full details

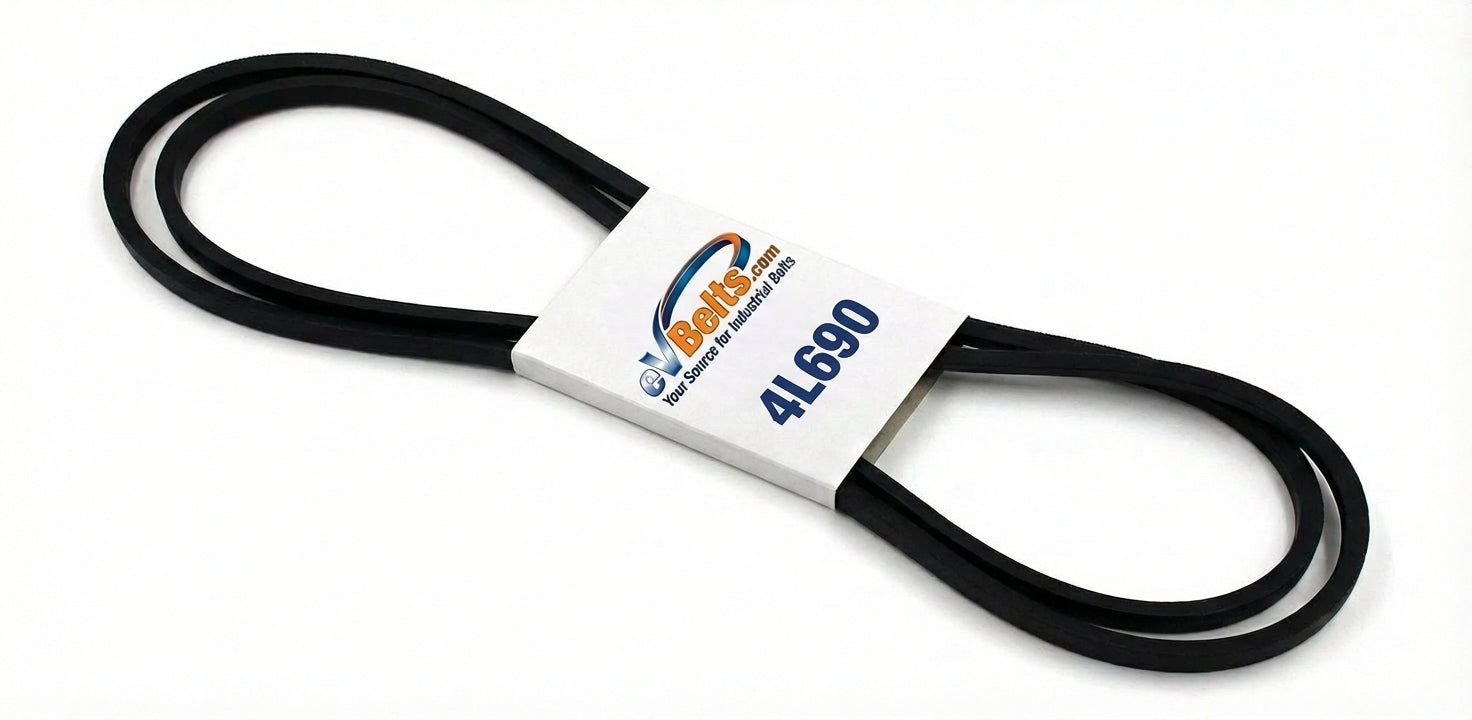

4L690

Name: 4L690
Brand: eVBelts
SKU: 1251447
Price: 5.38 USD
Availability: InStock

The 4L690 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 69" long, featuring oil and heat resistant rubber construction.

SKU: 1251447

$5.38

2069 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	4L690
Top Width	0.5 in / 12.7 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	67.0 in / 1701.8 mm
Outside Length	69.0 in / 1752.6 mm
Effective Length	68.0 in
Min Sheave Diameter	1.5 in / 38.1 mm
