What belt replaces CHIEF 1040?

The CHIEF 1040 is replaced by the 4L550 V-belt. This is a direct dimensional replacement that fits CHIEF equipment requiring the original 1040 belt.

What belt replaces GILSON 1040?

The GILSON 1040 is replaced by the 4L550 V-belt. This is a direct dimensional replacement that fits GILSON equipment requiring the original 1040 belt.

sales@evbelts.com
+1 (888) 301-6840

+1 (888) 301-6840
sales@evbelts.com

	__ __
Vendor	Vendor - __
SKU	SKU - __
Description	Description - __
Customizable title	Customizable title - __
Variant name	Variant name - __
	View full details

4L550

Name: 4L550
Brand: eVBelts
SKU: 1251435
Price: 3.05 USD
Availability: InStock

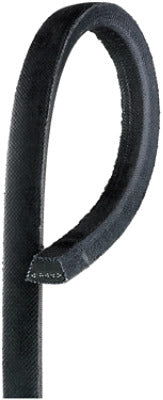

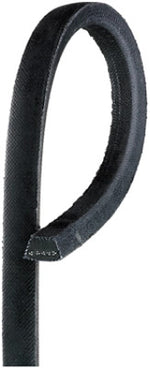

The 4L550 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 55" long, featuring oil and heat resistant rubber construction.

SKU: 1251435

$3.05

6574 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	4L550
Top Width	0.5 in / 12.7 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	53.0 in / 1346.2 mm
Outside Length	55.0 in / 1397.0 mm
Effective Length	54.0 in
Min Sheave Diameter	1.5 in / 38.1 mm
