4L290
4L290
/
/

4L290

SKU: 1251410

$15.00

(0)

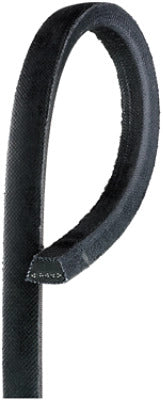

The 4L290 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 29" long, featuring oil and heat resistant rubber construction.

4L290 Specifications

  • Top Width: 0.5" (12.7mm)
  • Outside Length: 29" (736.6mm)
  • Inside Length: 27" (685.8mm)
  • Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L290

  • ATLAS 107037
  • DYNAMARK 20368
  • FIRESTONE 7540121
  • NOMA 20368

The 4L290 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship

Estimated delivery between March 06 and March 08.

Technical Specifications
Part Number 4L290
Top Width 0.5 in / 12.7 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 27.0 in / 685.8 mm
Outside Length 29.0 in / 736.6 mm
Effective Length 28.0 in
Min Sheave Diameter 1.5 in / 38.1 mm
Replaces These OEM Part Numbers (4)

This belt replaces the following OEM part numbers:

ATLAS 107037
DYNAMARK 20368
FIRESTONE 7540121
NOMA 20368
