10/5V750
10/5V750
/
/

10/5V750

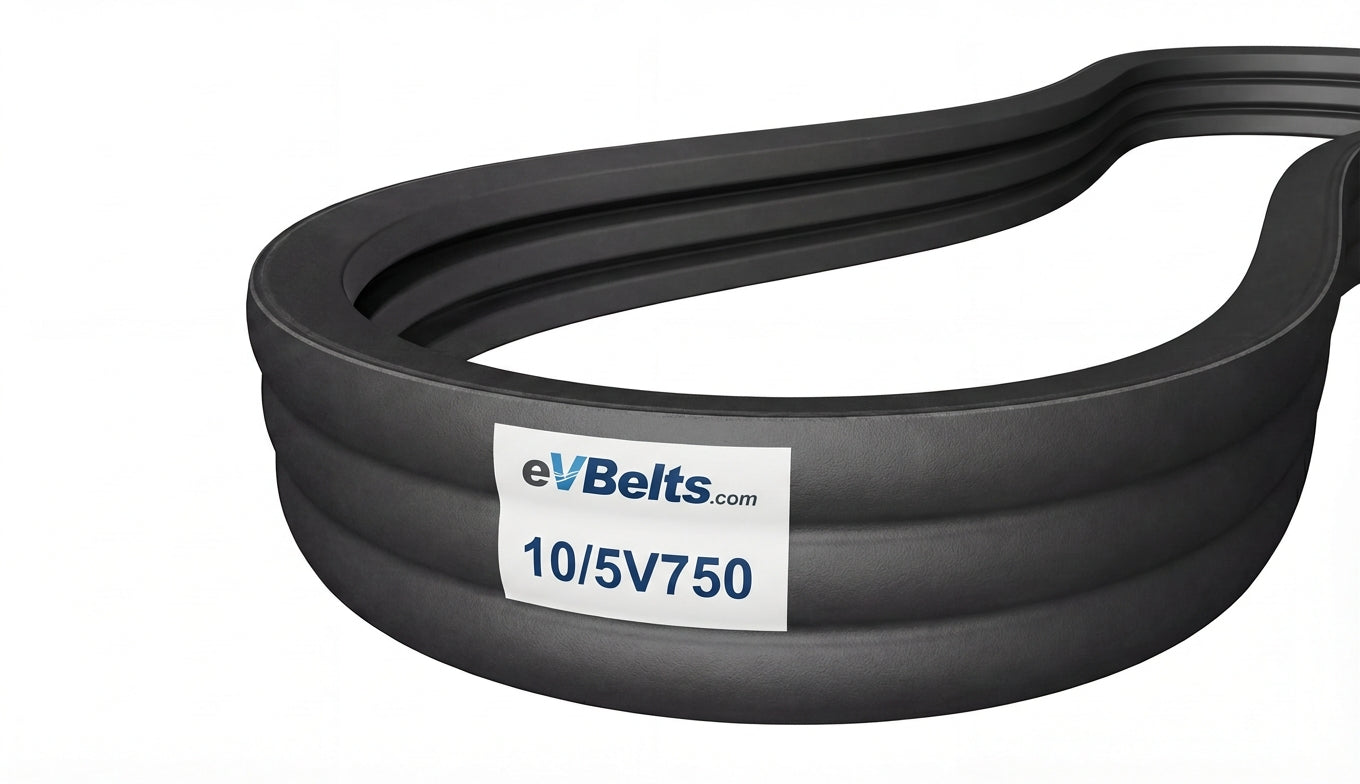

The 10/5V750 is a factory-joined 10-band 5V banded belt assembly measuring 6.52" wide x 75.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224185

$321.47

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications
Part Number 10/5V750
Top Width 6.52 in / 165.61 mm
Belt Depth 0.5313 in / 13.5 mm
Inside Length 74.0 in / 1879.6 mm
Outside Length 75.6 in / 1920.2 mm
Effective Length 75.0 in
Min Sheave Diameter 7.1 in / 180.3 mm
Ribs 10
10/5V750

$321.47

$321.47
