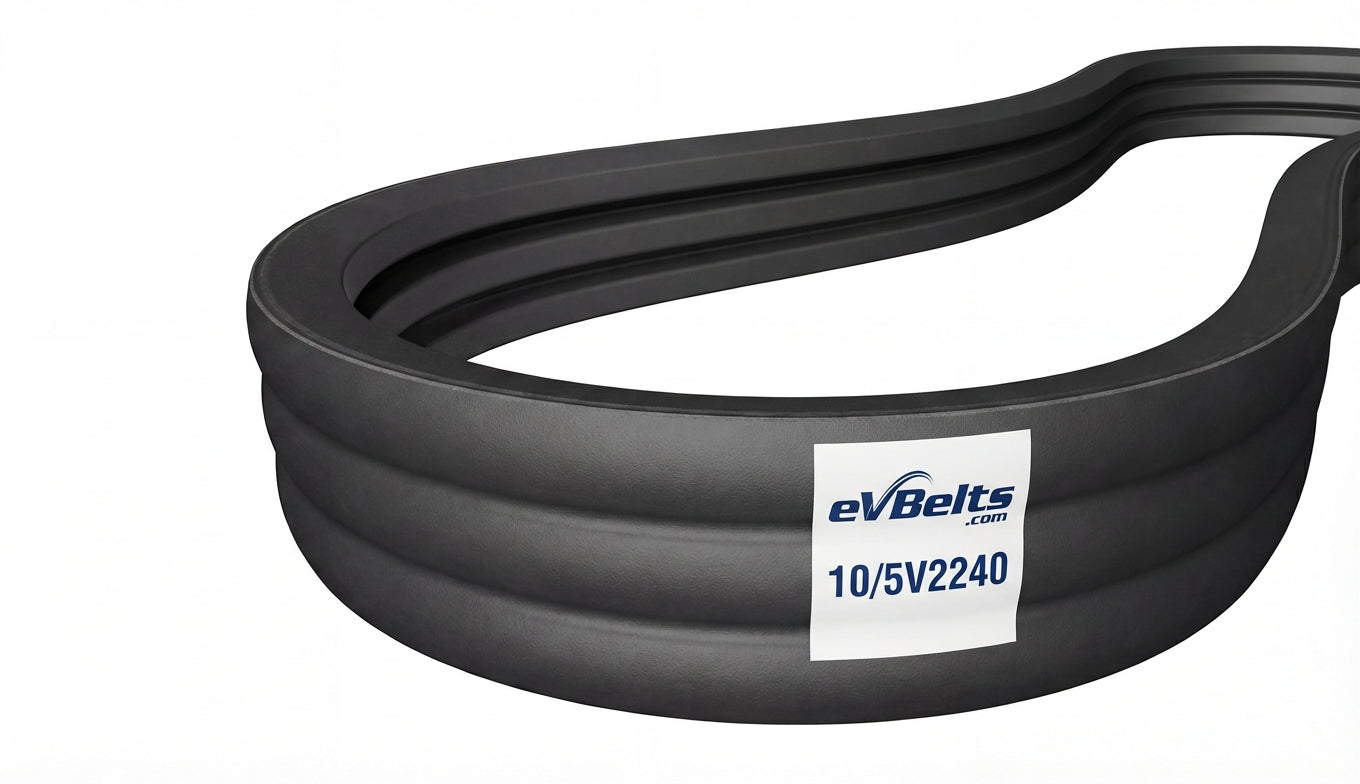

The 10/5V2240 is a factory-joined 10-band 5V banded belt assembly measuring 6.52" wide x 224.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224207

$732.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications
Part Number 10/5V2240
Top Width 6.52 in / 165.61 mm
Belt Depth 0.5313 in / 13.5 mm
Inside Length 223.0 in / 5664.2 mm
Outside Length 224.6 in / 5704.8 mm
Effective Length 224.0 in
Min Sheave Diameter 7.1 in / 180.3 mm
Ribs 10
