10/3VX335
10/3VX335
/
/

10/3VX335

SKU: 1225151

$660.57

(0)

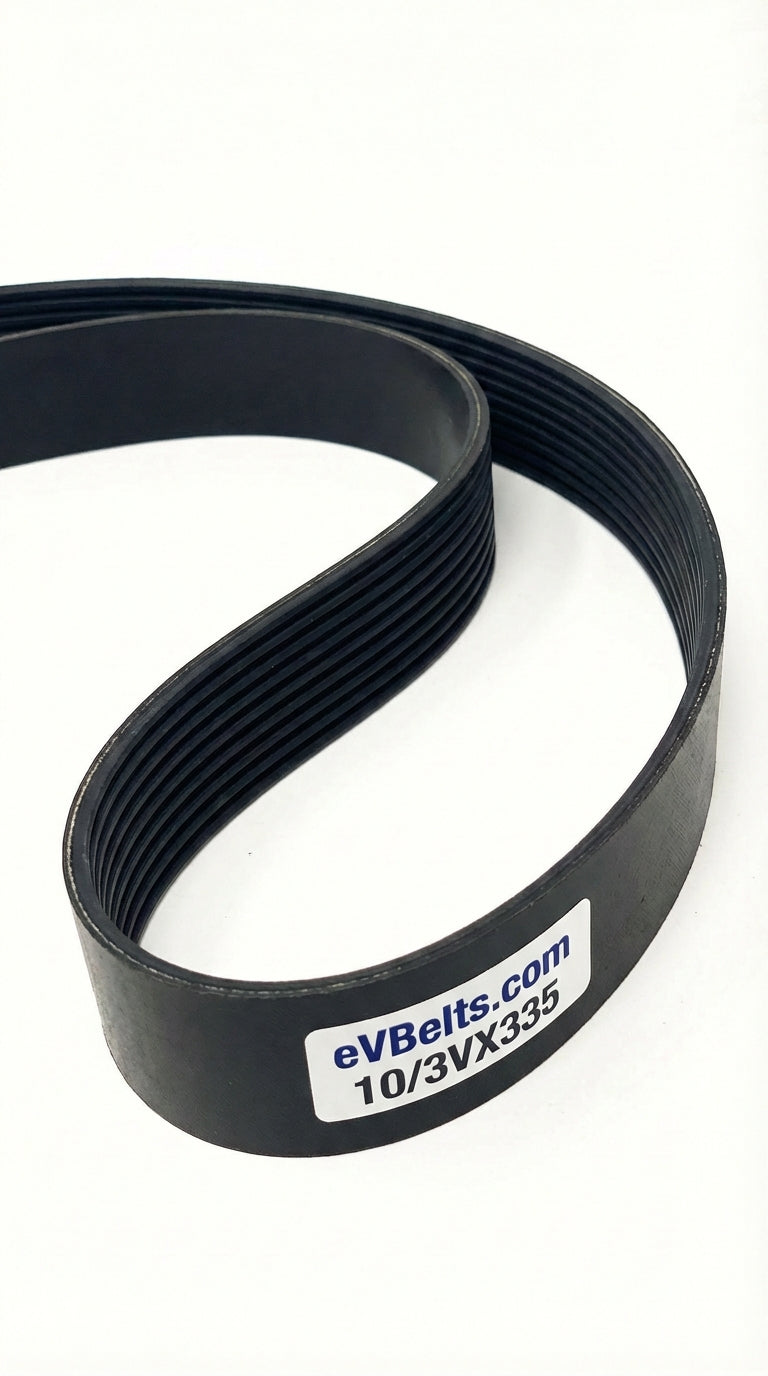

The 10/3VX335 is a factory-joined 10-band 3VX banded belt assembly measuring 4.02" wide x 33.8" long, offering improved flexibility around smaller pulleys.

10/3VX335 Specifications

  • Top Width: 4.02" (102.11mm)
  • Outside Length: 33.8" (858.5mm)
  • Inside Length: 33" (838.2mm)
  • Min Pulley Diameter: 2.2"

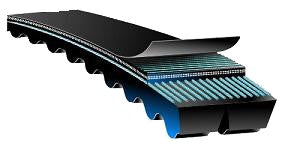

  • Profile: Cogged/Notched
  • Configuration: 10-Band Set

The 10/3VX335 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship
Technical Specifications
Part Number 10/3VX335
Top Width 4.02 in / 102.11 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 33.0 in / 838.2 mm
Outside Length 33.8 in / 858.5 mm
Effective Length 33.5 in
Min Sheave Diameter 2.2 in / 55.9 mm
Ribs 10
Cogged Yes
