10/3V850
10/3V850
/
/

10/3V850

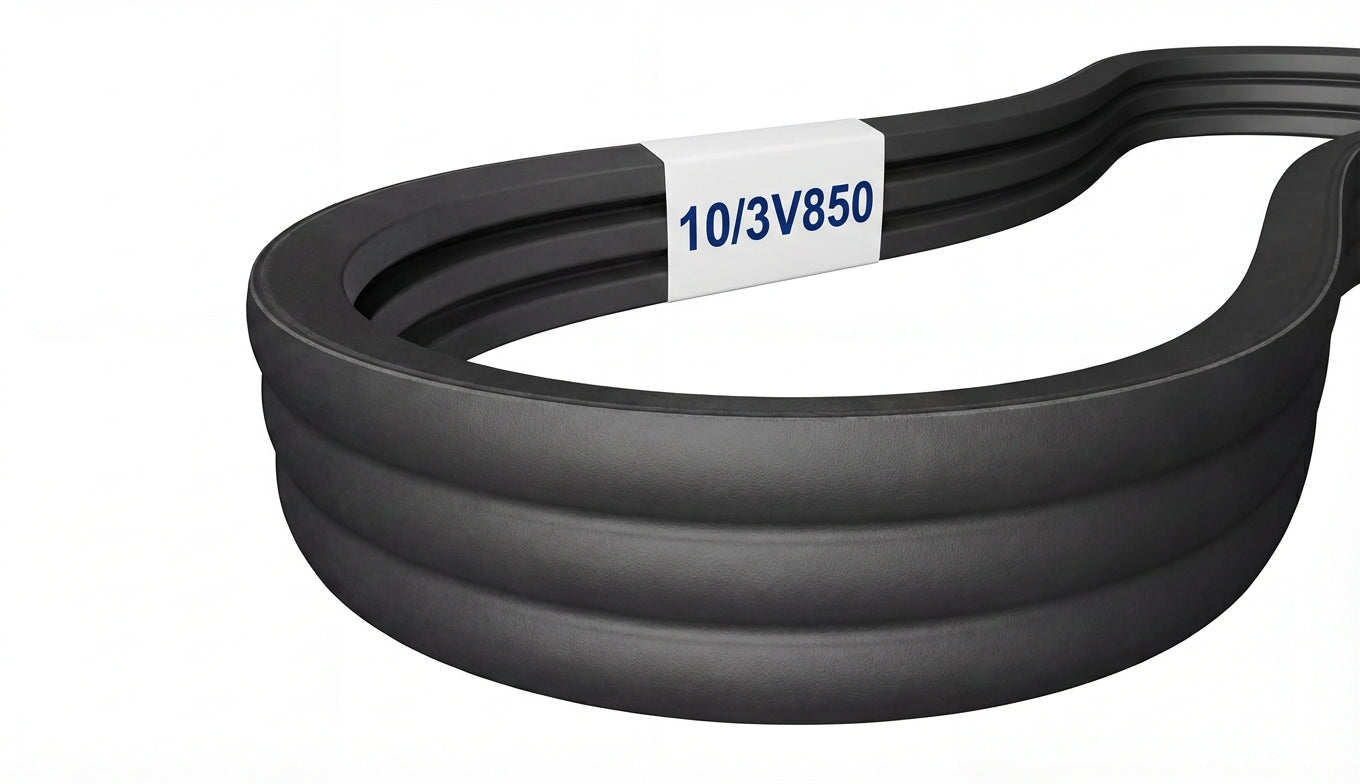

The 10/3V850 is a factory-joined 10-band 3V banded belt assembly measuring 4.02" wide x 85.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223516

$97.08

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications
Part Number 10/3V850
Top Width 4.02 in / 102.11 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 84.5 in / 2146.3 mm
Outside Length 85.3 in / 2166.6 mm
Effective Length 85.0 in
Min Sheave Diameter 2.65 in / 67.3 mm
Ribs 10
