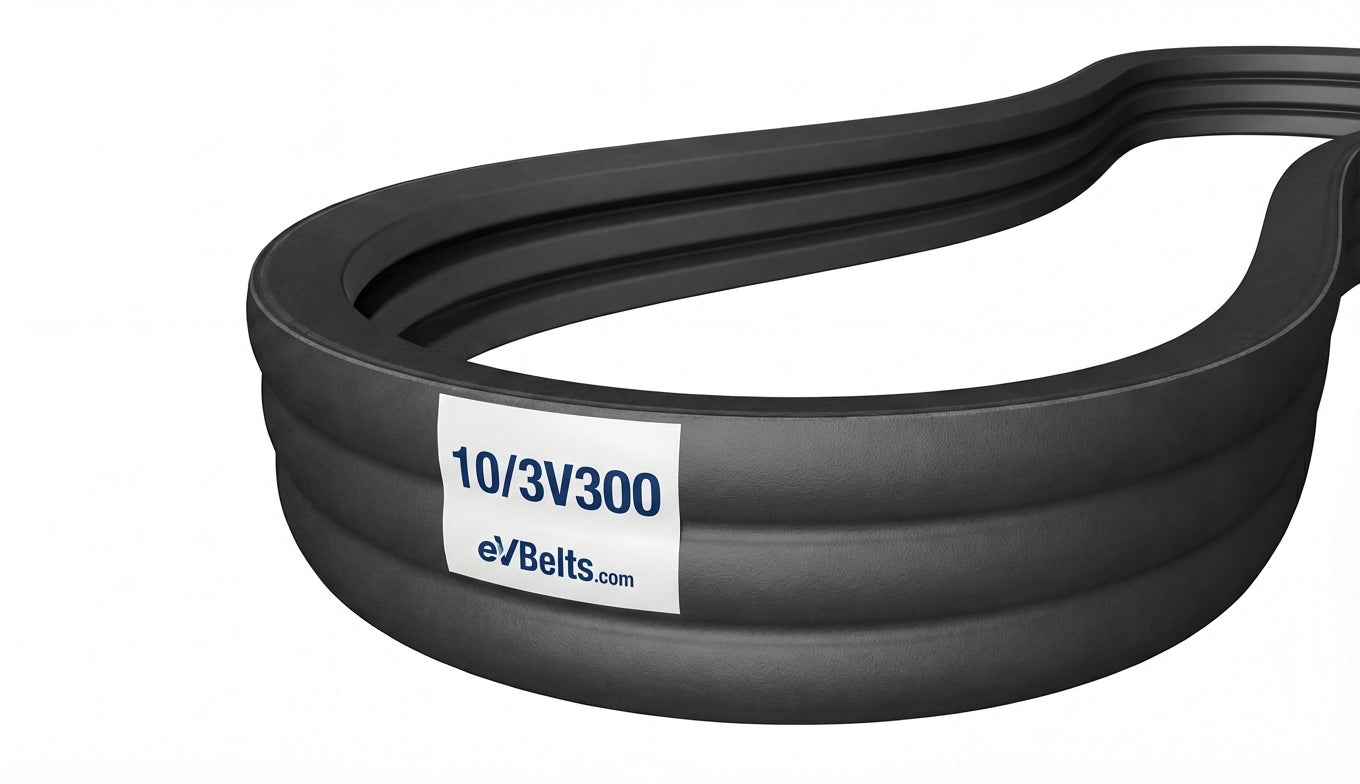

The 10/3V300 is a factory-joined 10-band 3V banded belt assembly measuring 4.02" wide x 30.3" long, featuring oil and heat resistant rubber construction.

10/3V300 Specifications

  • Top Width: 4.02" (102.11mm)
  • Outside Length: 30.3" (769.6mm)
  • Inside Length: 29.5" (749.3mm)
  • Min Pulley Diameter: 2.65"
  • Configuration: 10-Band Set

The 10/3V300 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship
Technical Specifications
Part Number 10/3V300
Top Width 4.02 in / 102.11 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 29.5 in / 749.3 mm
Outside Length 30.3 in / 769.6 mm
Effective Length 30.0 in
Min Sheave Diameter 2.65 in / 67.3 mm
Ribs 10
