10/3V1400
10/3V1400
/
/

10/3V1400

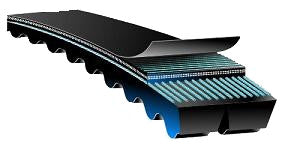

The 10/3V1400 is a factory-joined 10-band 3V banded belt assembly measuring 4.02" wide x 140.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223527

$171.33

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications
Part Number 10/3V1400
Top Width 4.02 in / 102.11 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 139.5 in / 3543.3 mm
Outside Length 140.3 in / 3563.6 mm
Effective Length 140.0 in
Min Sheave Diameter 2.65 in / 67.3 mm
Ribs 10
