8/D255

Top Width: 10.21" (259.33mm)
Outside Length: 258.3" (6560.8mm)
Inside Length: 255" (6477mm)
Min Pulley Diameter: 13"
Configuration: 8-Band Set

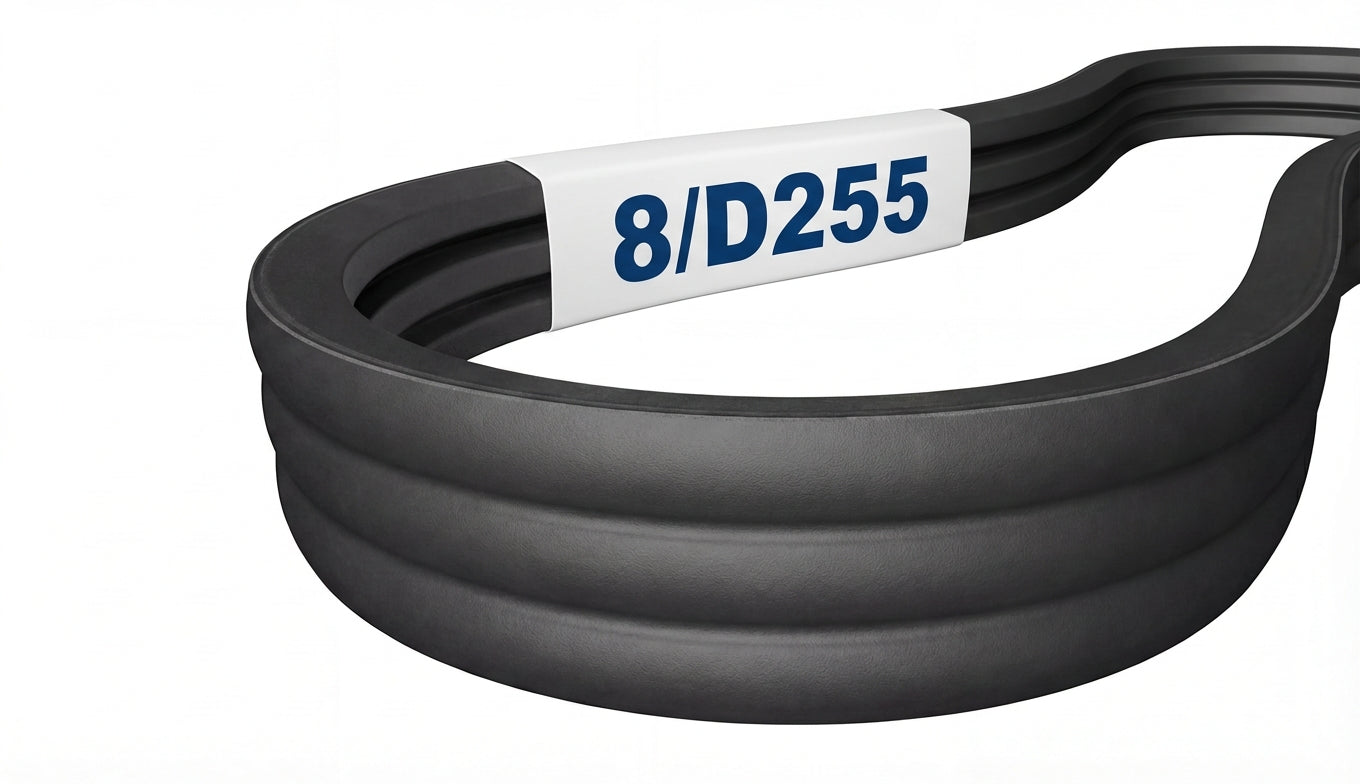

The 8/D255 is a factory-joined 8-band D banded belt assembly measuring 10.21" wide x 258.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216262

$1,344.89

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	8/D255
Top Width	10.21 in / 259.33 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	255.0 in / 6477.0 mm
Outside Length	258.3 in / 6560.8 mm
Effective Length	257.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	8
