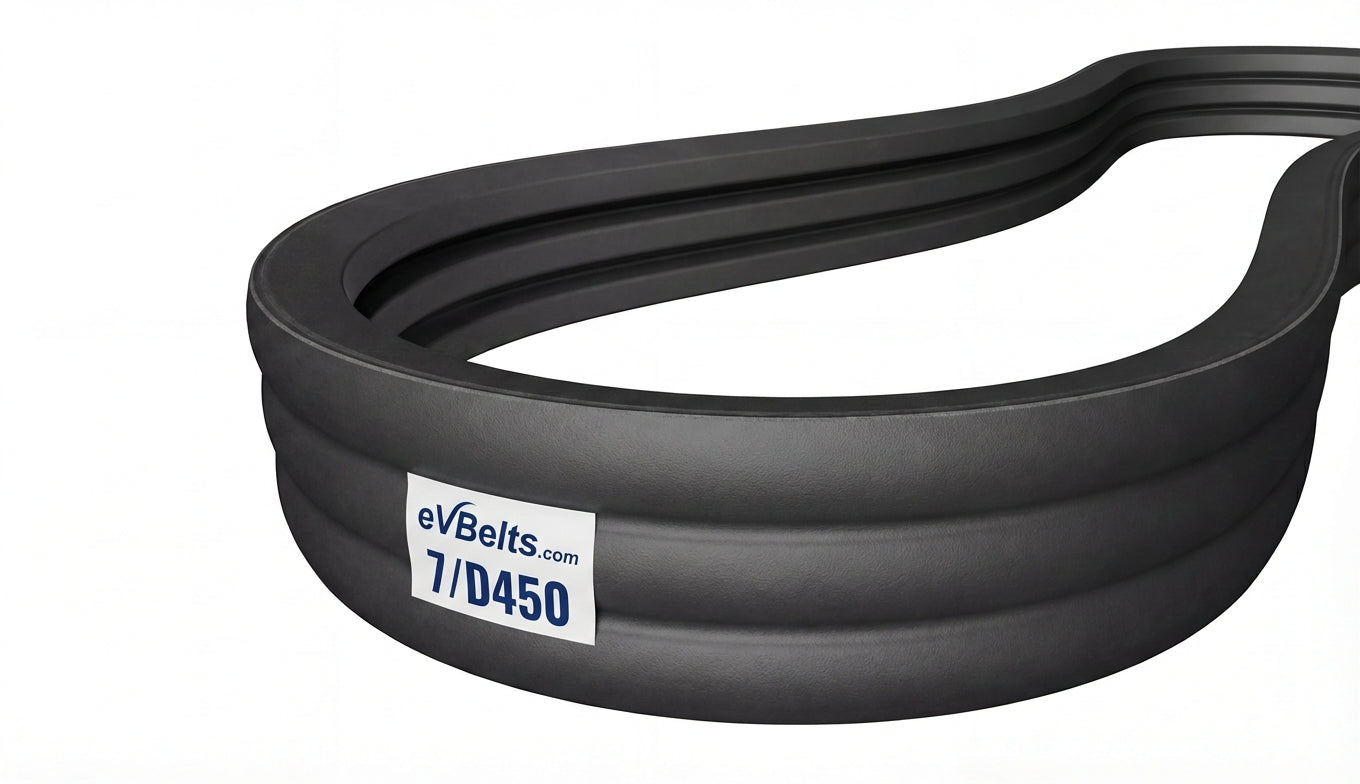

7/D450

Top Width: 8.93" (226.82mm)
Outside Length: 453.3" (11513.8mm)
Inside Length: 450" (11430mm)
Min Pulley Diameter: 13"
Configuration: 7-Band Set

The 7/D450 is a factory-joined 7-band D banded belt assembly measuring 8.93" wide x 453.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216255

$2,090.68

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	7/D450
Top Width	8.93 in / 226.82 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	450.0 in / 11430.0 mm
Outside Length	453.3 in / 11513.8 mm
Effective Length	452.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	7
