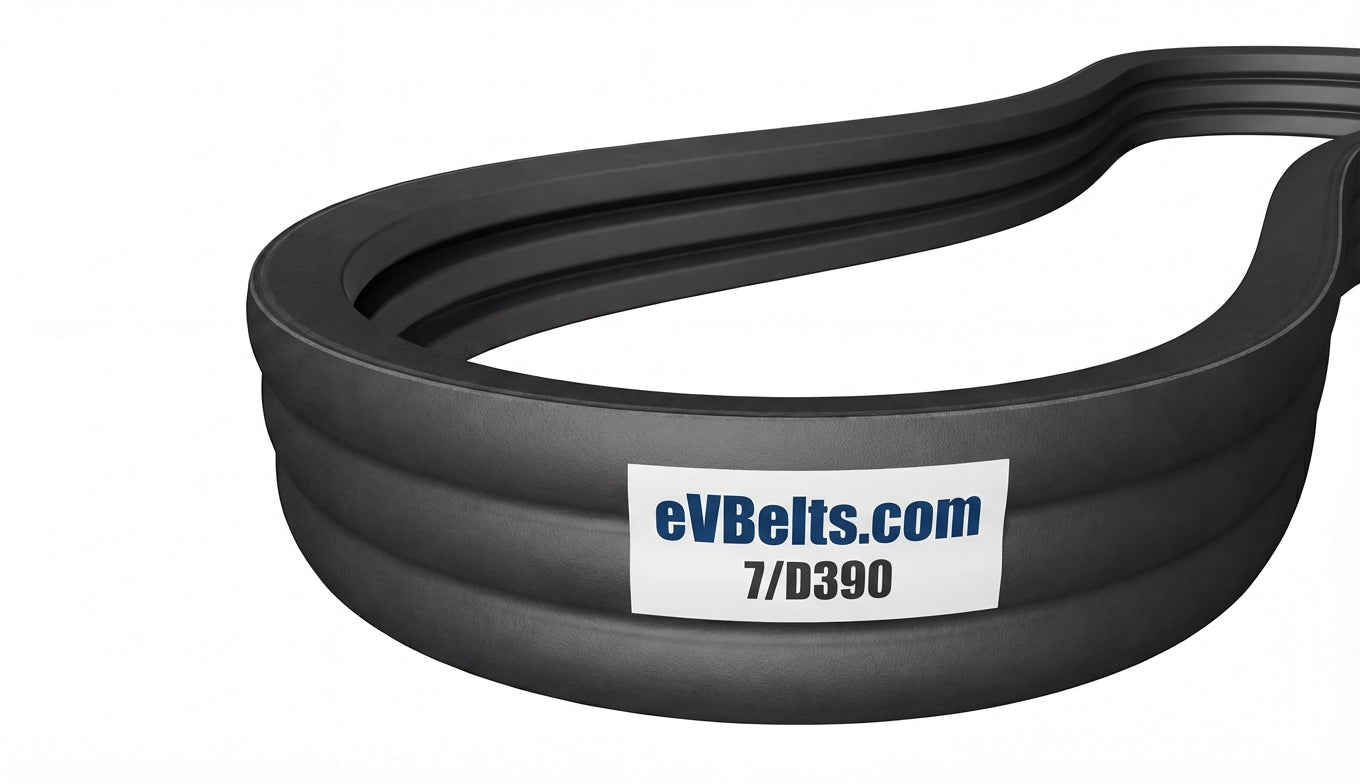

7/D390

Top Width: 8.93" (226.82mm)
Outside Length: 393.3" (9989.8mm)
Inside Length: 390" (9906mm)
Min Pulley Diameter: 13"
Configuration: 7-Band Set

The 7/D390 is a factory-joined 7-band D banded belt assembly measuring 8.93" wide x 393.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216253

$1,805.08

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	7/D390
Top Width	8.93 in / 226.82 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	390.0 in / 9906.0 mm
Outside Length	393.3 in / 9989.8 mm
Effective Length	392.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	7
