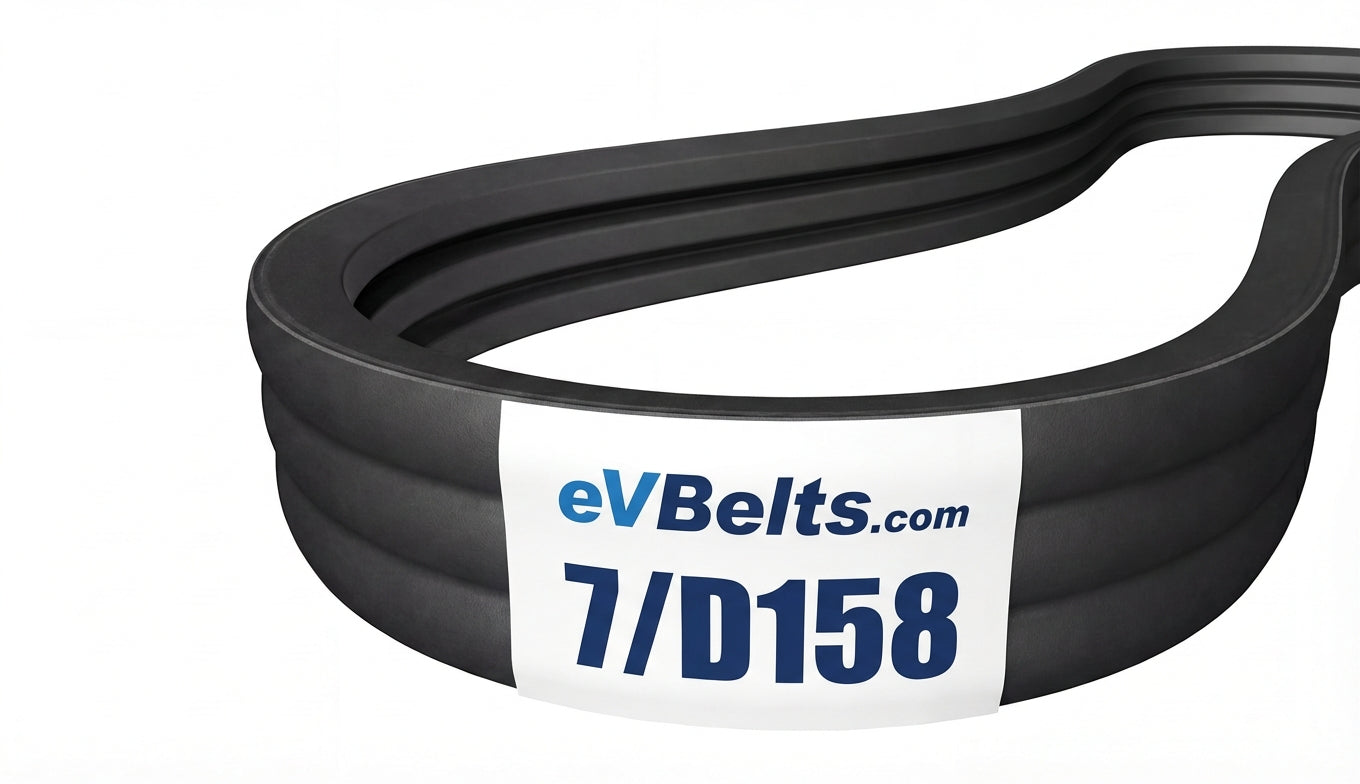

7/D158

Top Width: 8.93" (226.82mm)
Outside Length: 161.3" (4097mm)
Inside Length: 158" (4013.2mm)
Min Pulley Diameter: 13"
Configuration: 7-Band Set

The 7/D158 is a factory-joined 7-band D banded belt assembly measuring 8.93" wide x 161.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216238

$742.58

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	7/D158
Top Width	8.93 in / 226.82 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	158.0 in / 4013.2 mm
Outside Length	161.3 in / 4097.0 mm
Effective Length	160.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	7
