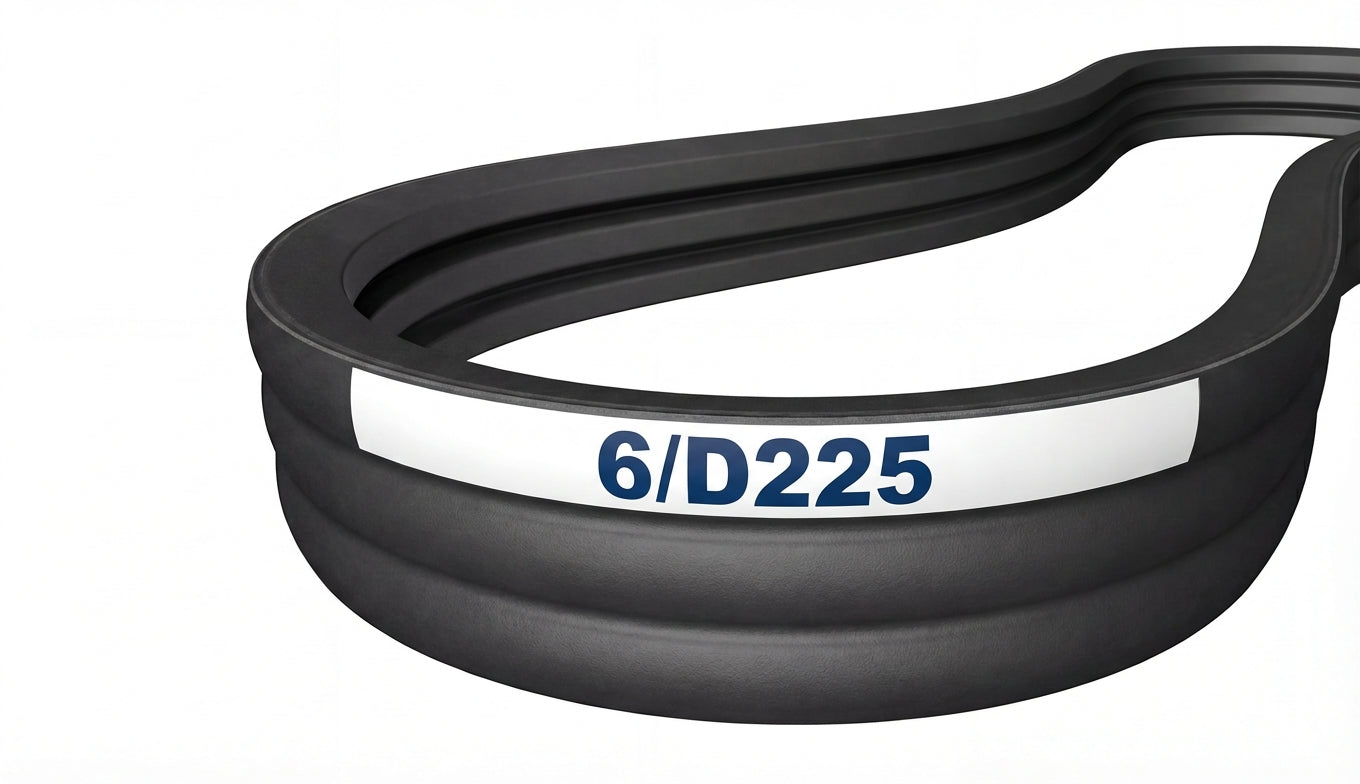

6/D225

Top Width: 7.65" (194.31mm)
Outside Length: 228.3" (5798.8mm)
Inside Length: 225" (5715mm)
Min Pulley Diameter: 13"
Configuration: 6-Band Set

The 6/D225 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 228.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216220

$892.32

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	6/D225
Top Width	7.65 in / 194.31 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	225.0 in / 5715.0 mm
Outside Length	228.3 in / 5798.8 mm
Effective Length	227.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	6
