6/D144

Top Width: 7.65" (194.31mm)
Outside Length: 147.3" (3741.4mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 13"
Configuration: 6-Band Set

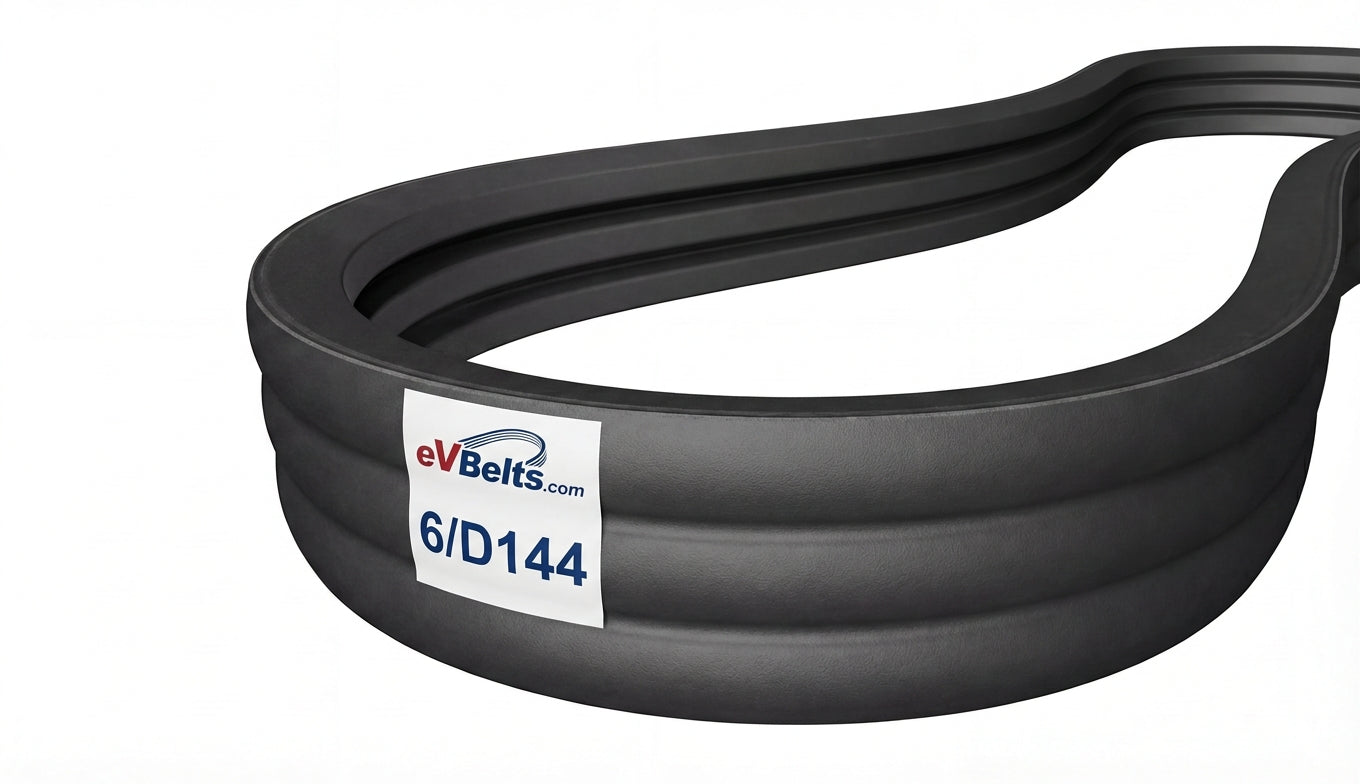

The 6/D144 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 147.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216214

$358.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	6/D144
Top Width	7.65 in / 194.31 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	147.3 in / 3741.4 mm
Effective Length	146.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	6
