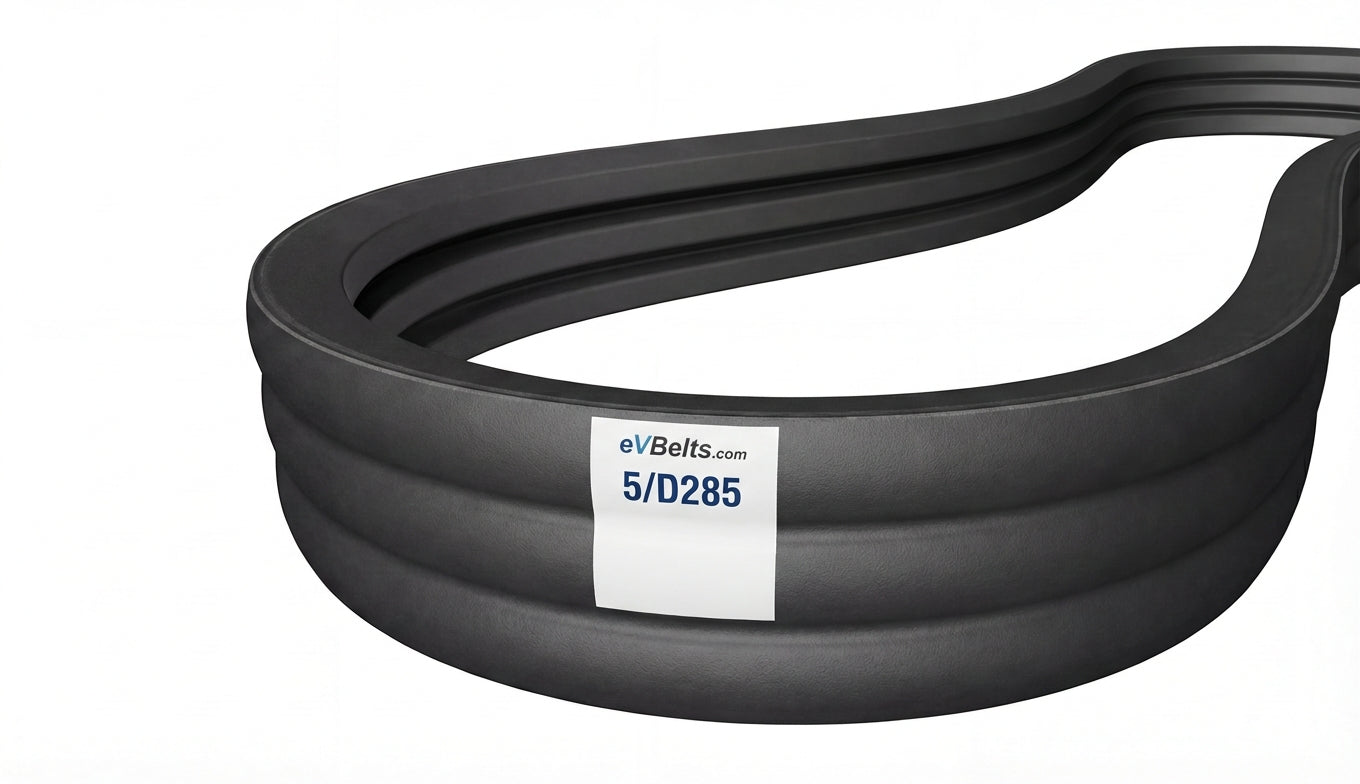

5/D285

Top Width: 6.37" (161.8mm)
Outside Length: 288.3" (7322.8mm)
Inside Length: 285" (7239mm)
Min Pulley Diameter: 13"
Configuration: 5-Band Set

The 5/D285 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 288.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216201

$895.61

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/D285
Top Width	6.37 in / 161.8 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	285.0 in / 7239.0 mm
Outside Length	288.3 in / 7322.8 mm
Effective Length	287.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	5
