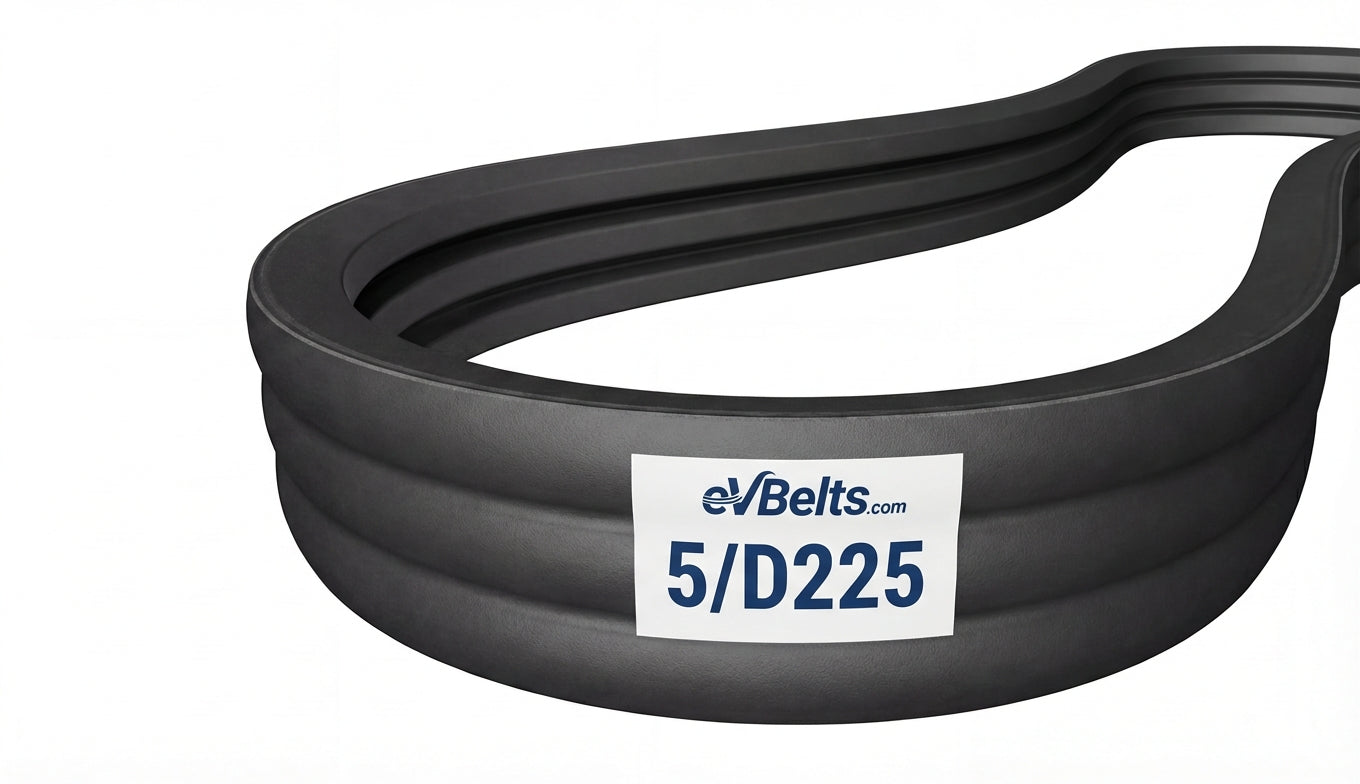

5/D225

Top Width: 6.37" (161.8mm)
Outside Length: 228.3" (5798.8mm)
Inside Length: 225" (5715mm)
Min Pulley Diameter: 13"
Configuration: 5-Band Set

The 5/D225 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 228.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216197

$738.59

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/D225
Top Width	6.37 in / 161.8 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	225.0 in / 5715.0 mm
Outside Length	228.3 in / 5798.8 mm
Effective Length	227.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	5
