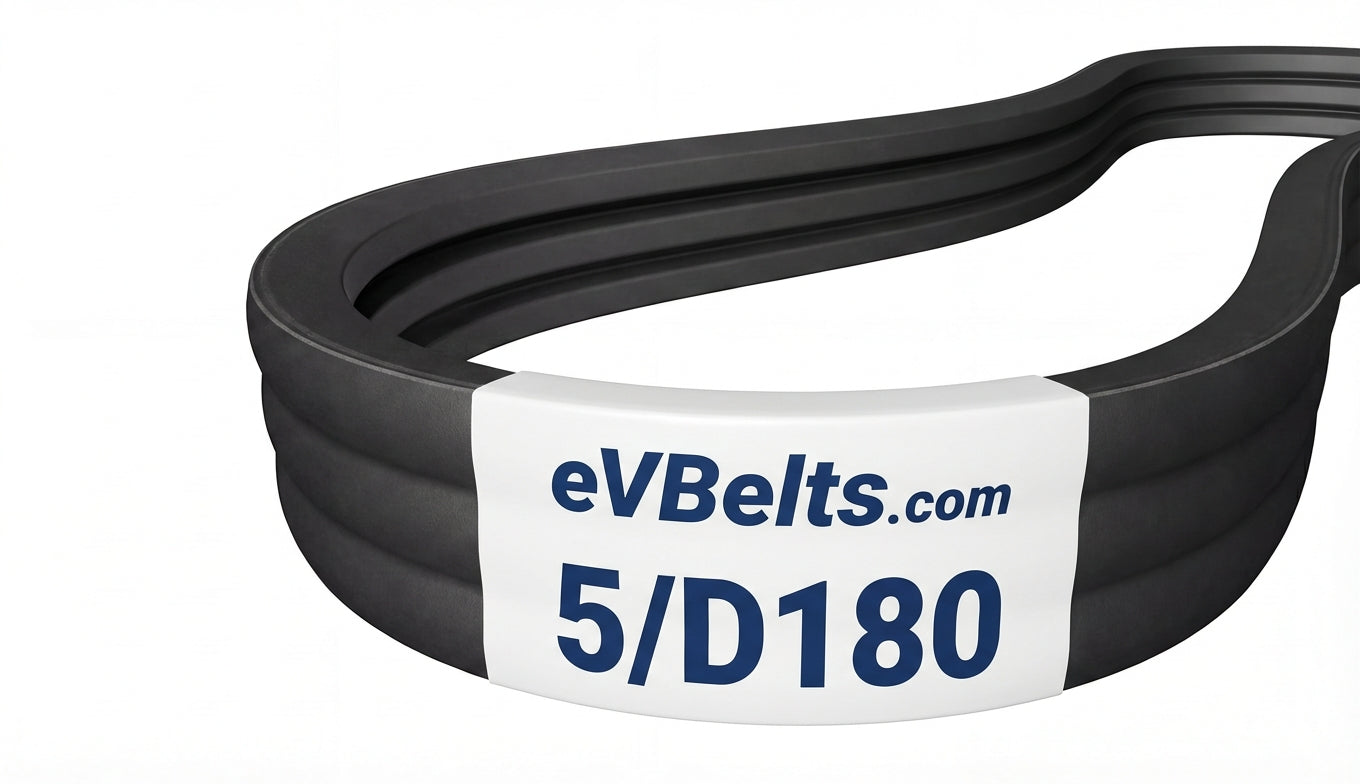

5/D180

Top Width: 6.37" (161.8mm)
Outside Length: 183.3" (4655.8mm)
Inside Length: 180" (4572mm)
Min Pulley Diameter: 13"
Configuration: 5-Band Set

The 5/D180 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 183.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216194

$477.63

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/D180
Top Width	6.37 in / 161.8 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	180.0 in / 4572.0 mm
Outside Length	183.3 in / 4655.8 mm
Effective Length	182.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	5
