4/D420

Top Width: 5.09" (129.29mm)
Outside Length: 423.3" (10751.8mm)
Inside Length: 420" (10668mm)
Min Pulley Diameter: 13"
Configuration: 4-Band Set

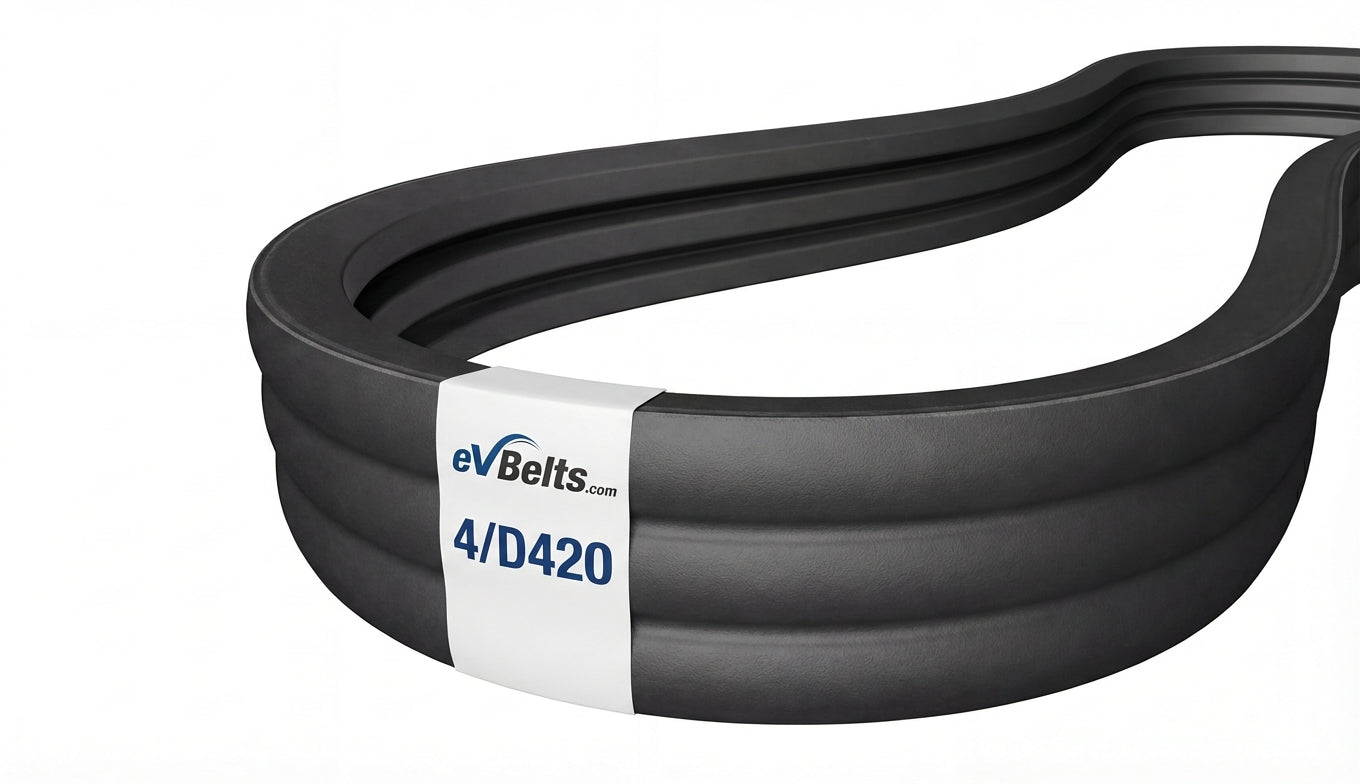

The 4/D420 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 423.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216185

$784.98

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/D420
Top Width	5.09 in / 129.29 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	420.0 in / 10668.0 mm
Outside Length	423.3 in / 10751.8 mm
Effective Length	422.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	4
