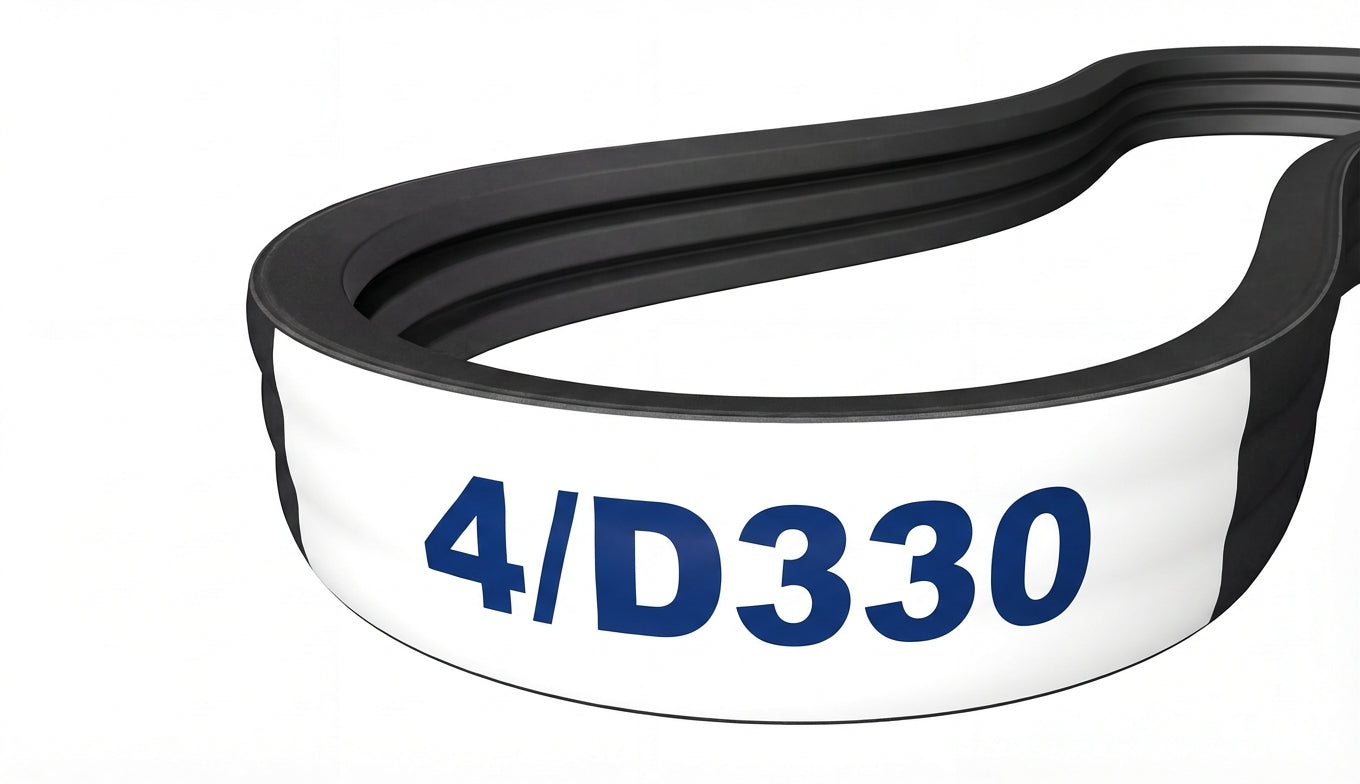

4/D330

Top Width: 5.09" (129.29mm)
Outside Length: 333.3" (8465.8mm)
Inside Length: 330" (8382mm)
Min Pulley Diameter: 13"
Configuration: 4-Band Set

The 4/D330 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 333.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216180

$721.41

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/D330
Top Width	5.09 in / 129.29 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	330.0 in / 8382.0 mm
Outside Length	333.3 in / 8465.8 mm
Effective Length	332.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	4
