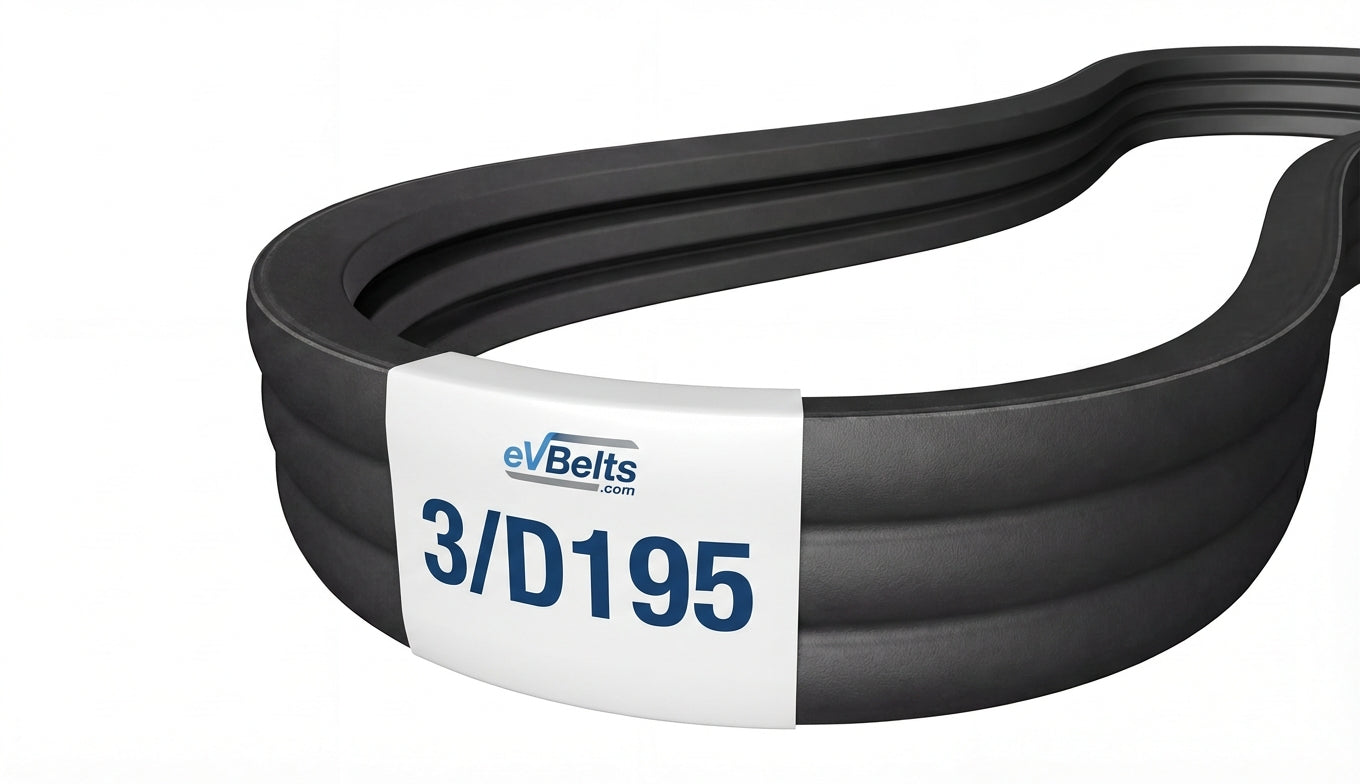

3/D195

Top Width: 3.81" (96.77mm)
Outside Length: 198.3" (5036.8mm)
Inside Length: 195" (4953mm)
Min Pulley Diameter: 13"
Configuration: 3-Band Set

The 3/D195 is a factory-joined 3-band D banded belt assembly measuring 3.81" wide x 198.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216149

$220.87

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/D195
Top Width	3.81 in / 96.77 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	195.0 in / 4953.0 mm
Outside Length	198.3 in / 5036.8 mm
Effective Length	197.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	3
