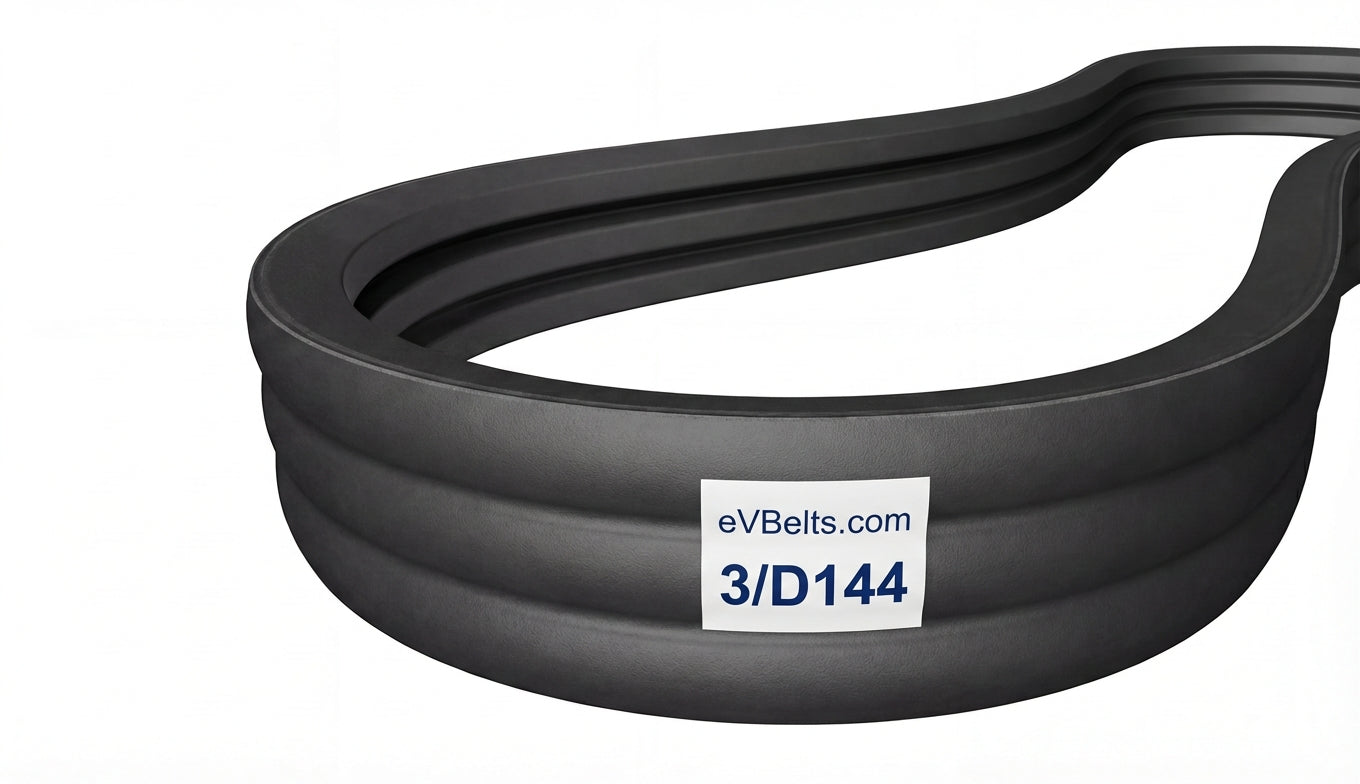

3/D144

Top Width: 3.81" (96.77mm)
Outside Length: 147.3" (3741.4mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 13"
Configuration: 3-Band Set

The 3/D144 is a factory-joined 3-band D banded belt assembly measuring 3.81" wide x 147.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216144

$264.74

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/D144
Top Width	3.81 in / 96.77 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	147.3 in / 3741.4 mm
Effective Length	146.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	3
