2/D540

Top Width: 2.53" (64.26mm)
Outside Length: 543.3" (13799.8mm)
Inside Length: 540" (13716mm)
Min Pulley Diameter: 13"
Configuration: 2-Band Set

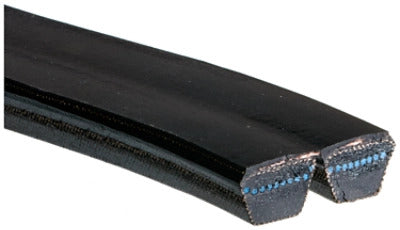

The 2/D540 is a factory-joined 2-band D banded belt assembly measuring 2.53" wide x 543.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216143

$656.84

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/D540
Top Width	2.53 in / 64.26 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	540.0 in / 13716.0 mm
Outside Length	543.3 in / 13799.8 mm
Effective Length	542.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	2
