2/D270

Top Width: 2.53" (64.26mm)
Outside Length: 273.3" (6941.8mm)
Inside Length: 270" (6858mm)
Min Pulley Diameter: 13"
Configuration: 2-Band Set

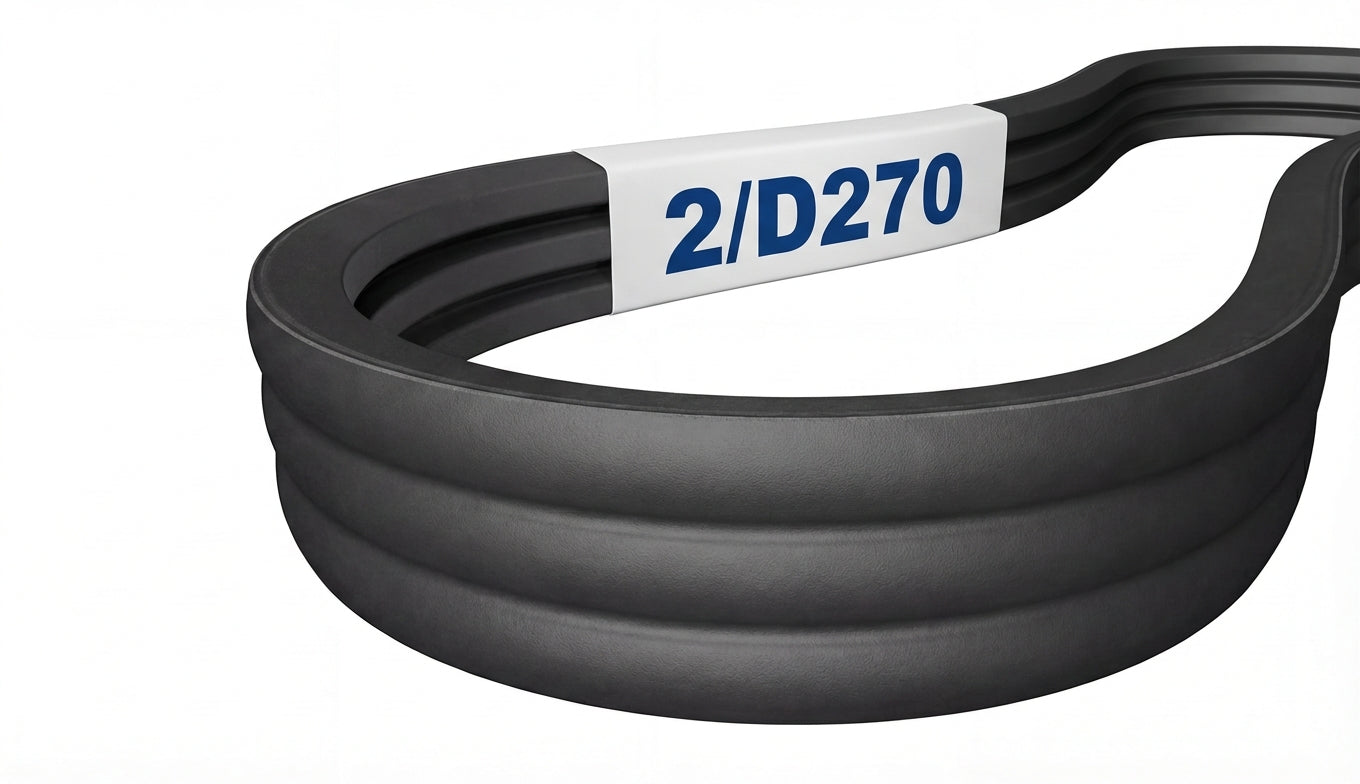

The 2/D270 is a factory-joined 2-band D banded belt assembly measuring 2.53" wide x 273.3" long, featuring oil and heat resistant rubber construction.

SKU: 1216131

$201.09

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/D270
Top Width	2.53 in / 64.26 mm
Belt Depth	0.75 in / 19.05 mm
Inside Length	270.0 in / 6858.0 mm
Outside Length	273.3 in / 6941.8 mm
Effective Length	272.5 in
Min Sheave Diameter	13.0 in / 330.2 mm
Ribs	2
