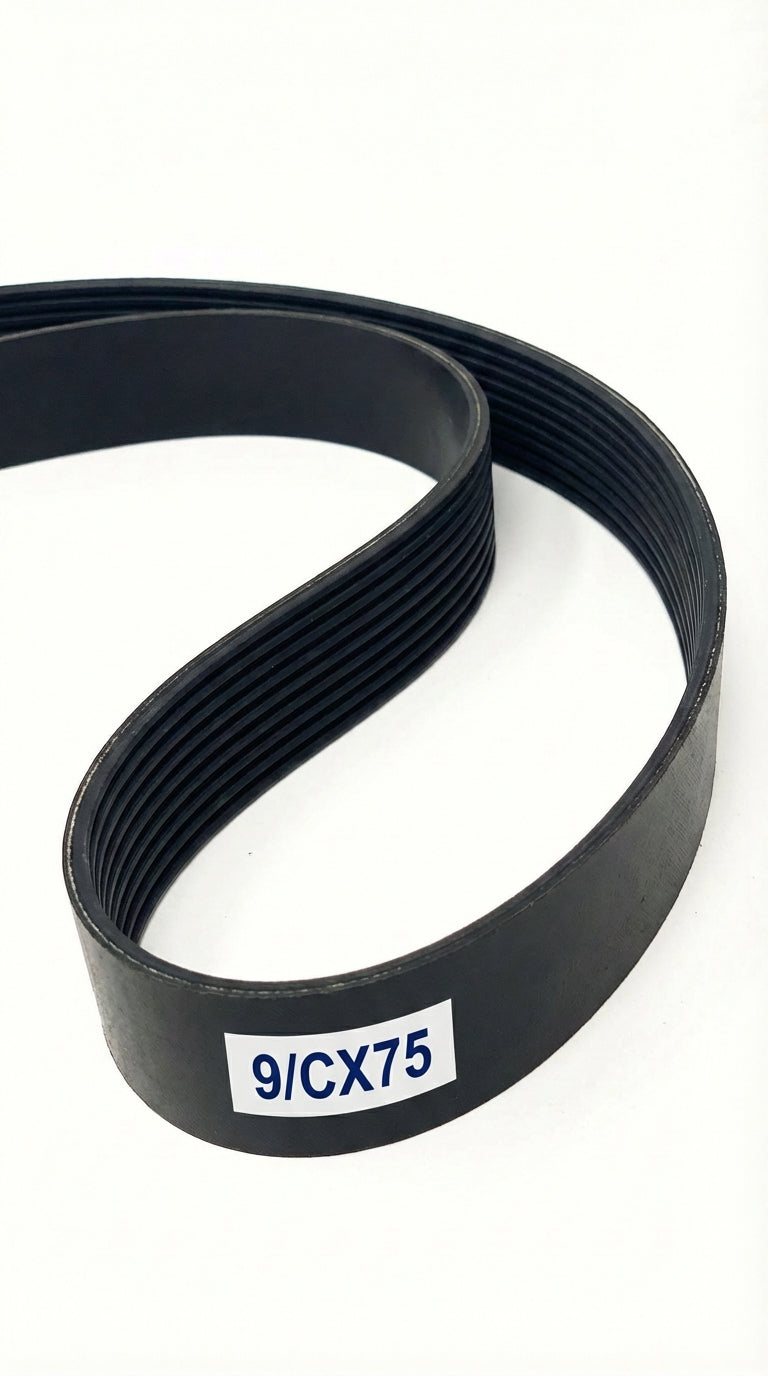

9/CX75
The 9/CX75 is a factory-joined 9-band CX banded belt assembly measuring 8.115" wide x 77.9" long, offering improved flexibility around smaller pulleys.
SKU: 1216848
$491.96
49196
0 In Stock
Estimated delivery between June 22 and June 24.
Technical Specifications
| Part Number | 9/CX75 |
| Top Width | 8.115 in / 206.12 mm |
| Belt Depth | 0.5313 in / 13.5 mm |
| Inside Length | 75.0 in / 1905.0 mm |
| Outside Length | 77.9 in / 1978.7 mm |
| Effective Length | 77.2 in |
| Min Sheave Diameter | 6.5 in / 165.1 mm |
| Ribs | 9 |
| Cogged | Yes |
9/CX75
$491.96
49196
$491.96
49196
