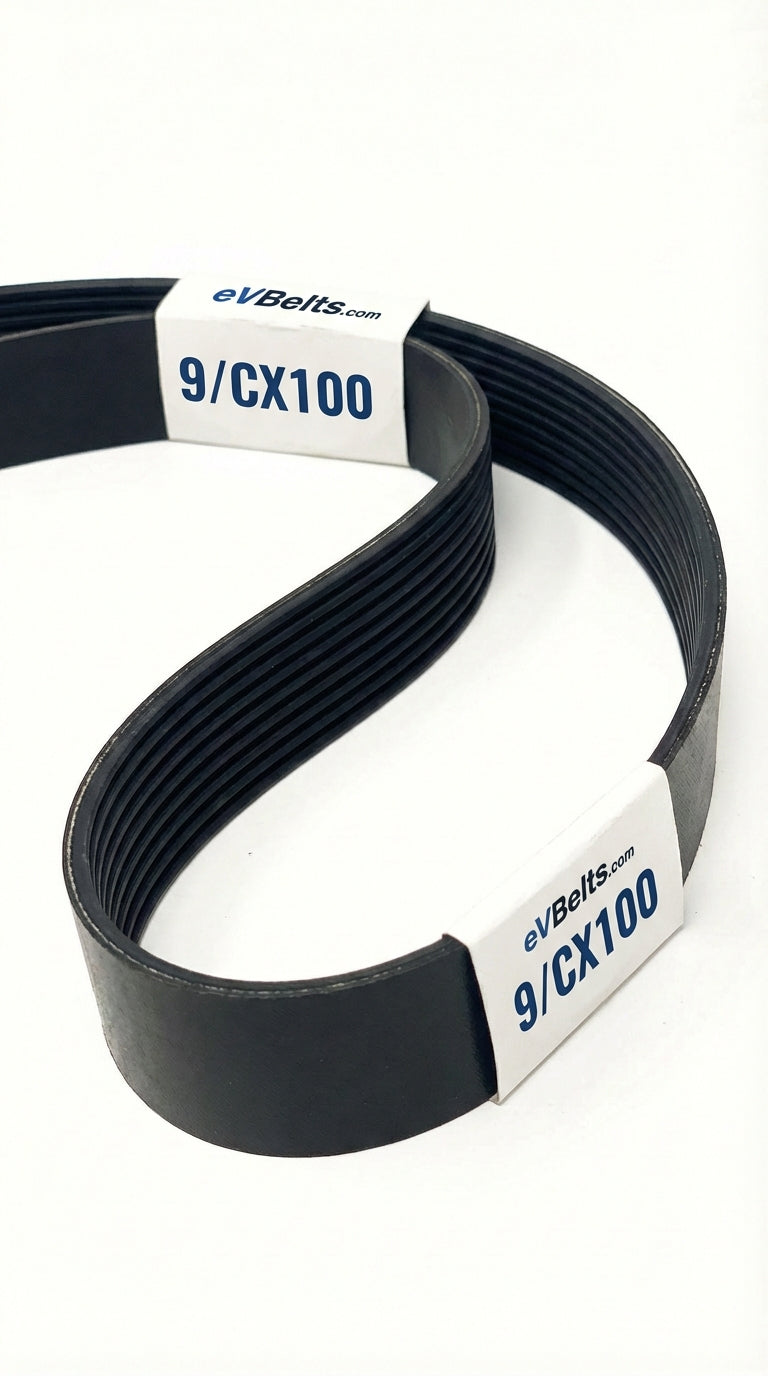

9/CX100

Top Width: 8.115" (206.12mm)
Outside Length: 102.9" (2613.7mm)
Inside Length: 100" (2540mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/CX100 is a factory-joined 9-band CX banded belt assembly measuring 8.115" wide x 102.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216853

$659.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	9/CX100
Top Width	8.115 in / 206.12 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	100.0 in / 2540.0 mm
Outside Length	102.9 in / 2613.7 mm
Effective Length	102.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	9
Cogged	Yes
