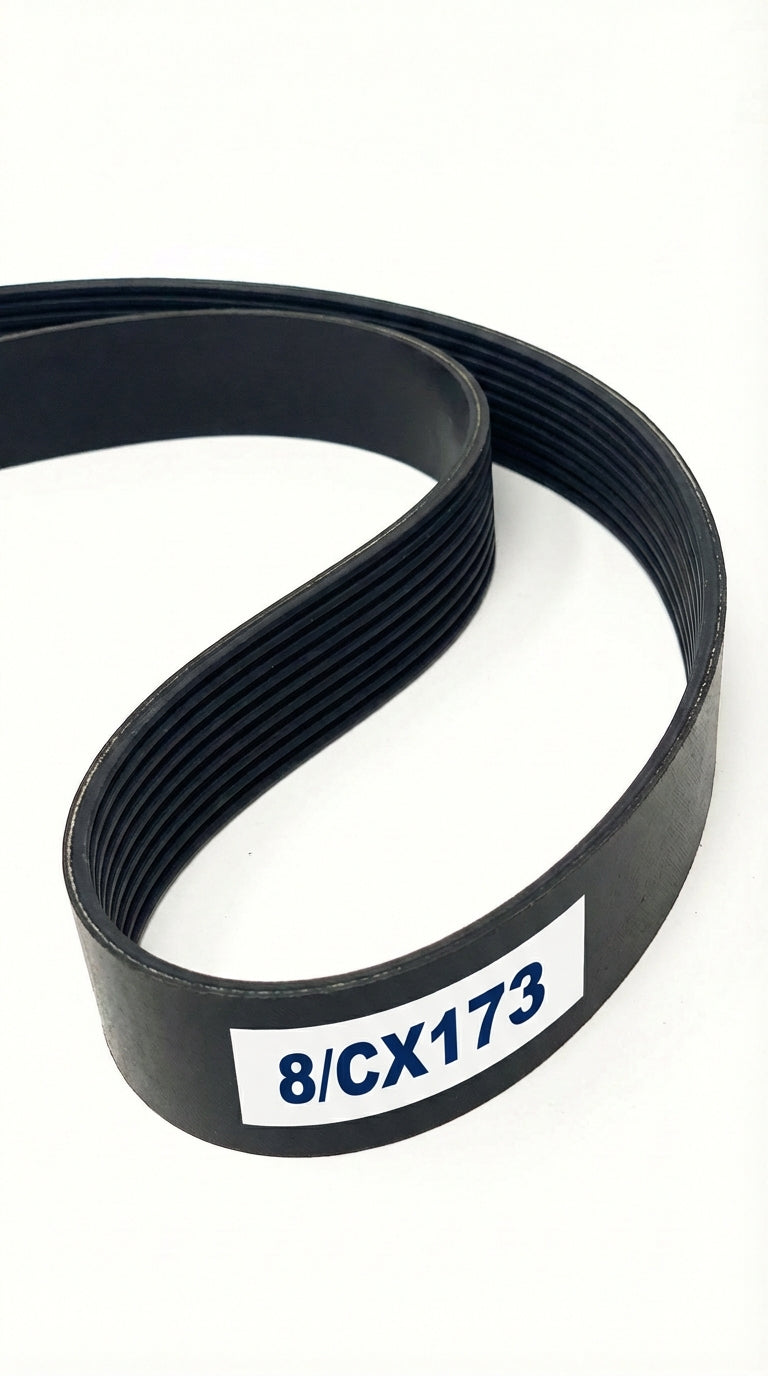

8/CX173

Top Width: 7.21" (183.13mm)
Outside Length: 175.9" (4467.9mm)
Inside Length: 173" (4394.2mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 8-Band Set

The 8/CX173 is a factory-joined 8-band CX banded belt assembly measuring 7.21" wide x 175.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216847

$1,000.31

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	8/CX173
Top Width	7.21 in / 183.13 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	173.0 in / 4394.2 mm
Outside Length	175.9 in / 4467.9 mm
Effective Length	175.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	8
Cogged	Yes
