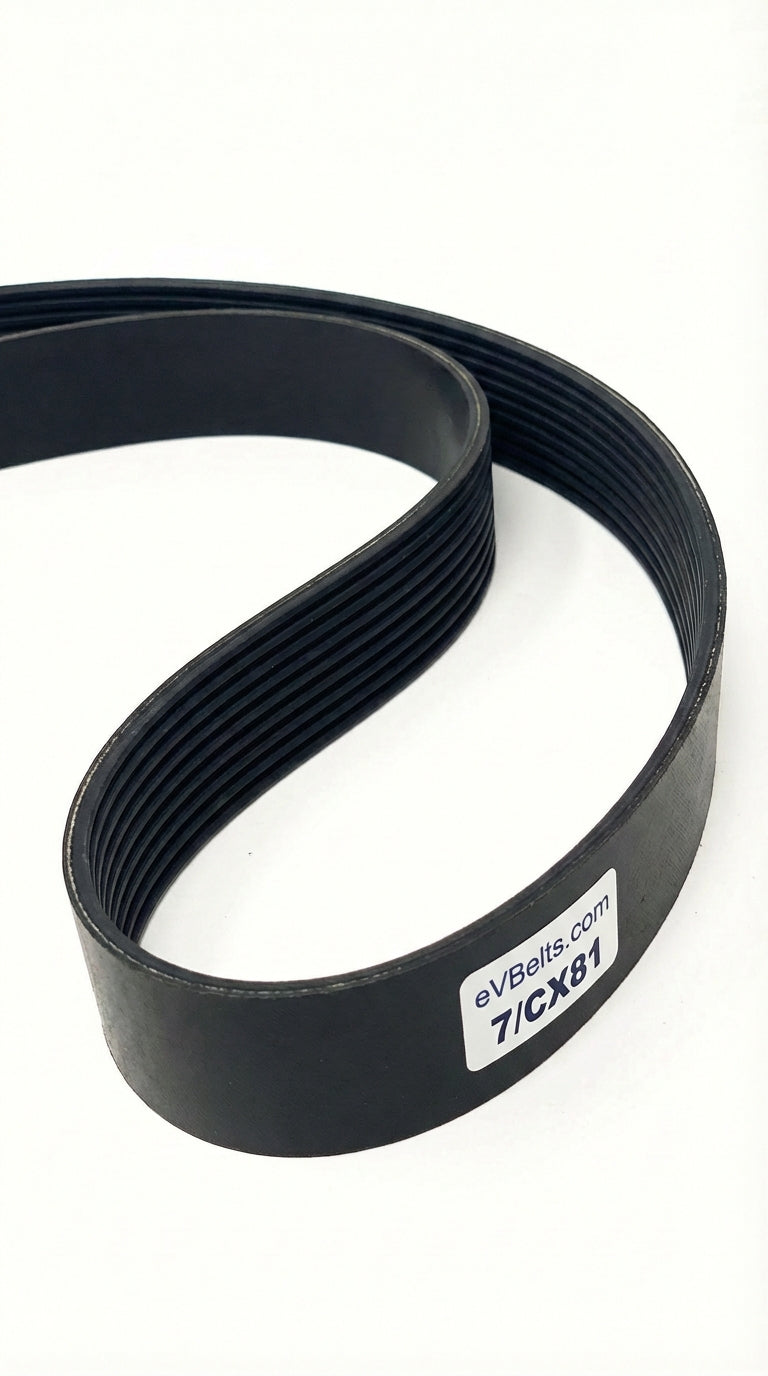

7/CX81

Top Width: 6.305" (160.15mm)
Outside Length: 83.9" (2131.1mm)
Inside Length: 81" (2057.4mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/CX81 is a factory-joined 7-band CX banded belt assembly measuring 6.305" wide x 83.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216824

$417.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	7/CX81
Top Width	6.305 in / 160.15 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	81.0 in / 2057.4 mm
Outside Length	83.9 in / 2131.1 mm
Effective Length	83.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	7
Cogged	Yes
