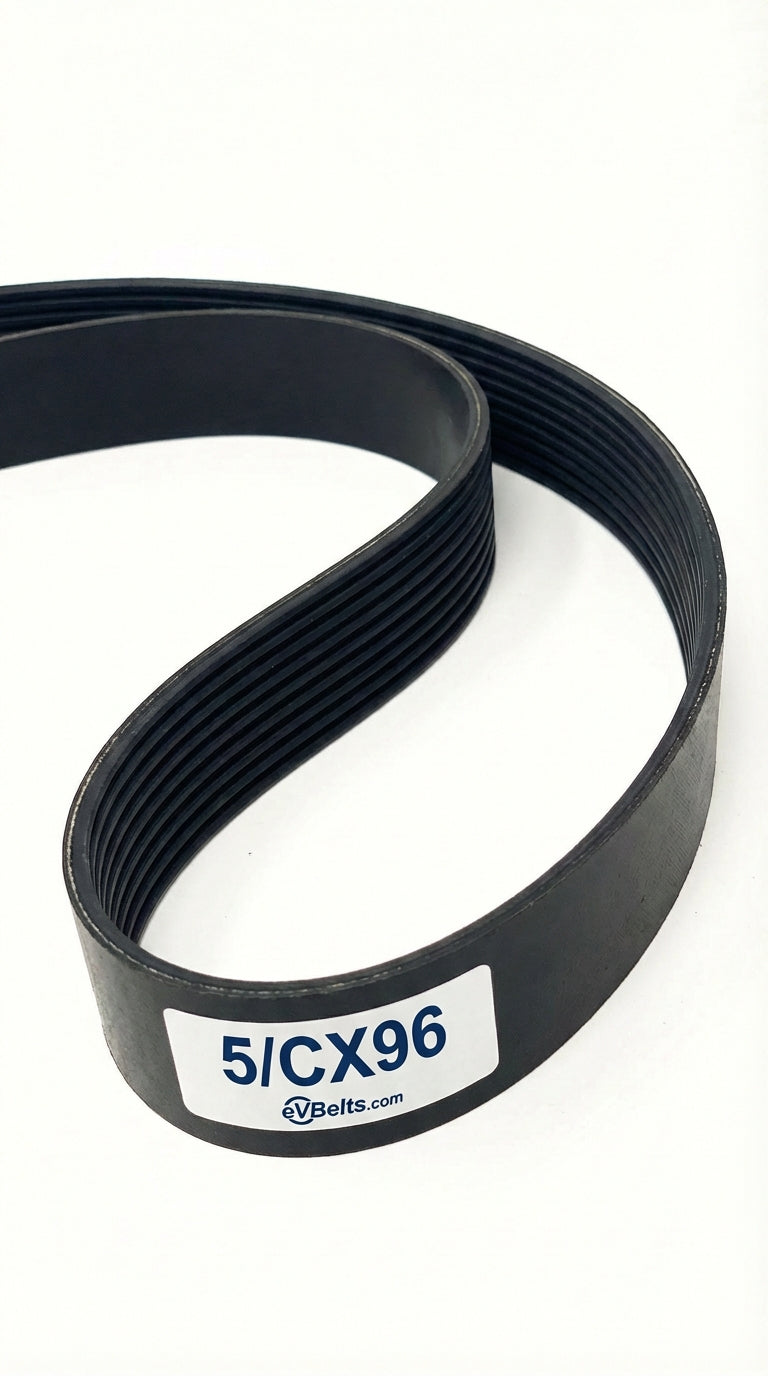

5/CX96

Top Width: 4.495" (114.17mm)
Outside Length: 98.9" (2512.1mm)
Inside Length: 96" (2438.4mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 5-Band Set

The 5/CX96 is a factory-joined 5-band CX banded belt assembly measuring 4.495" wide x 98.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216799

$292.35

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/CX96
Top Width	4.495 in / 114.17 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	96.0 in / 2438.4 mm
Outside Length	98.9 in / 2512.1 mm
Effective Length	98.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	5
Cogged	Yes
