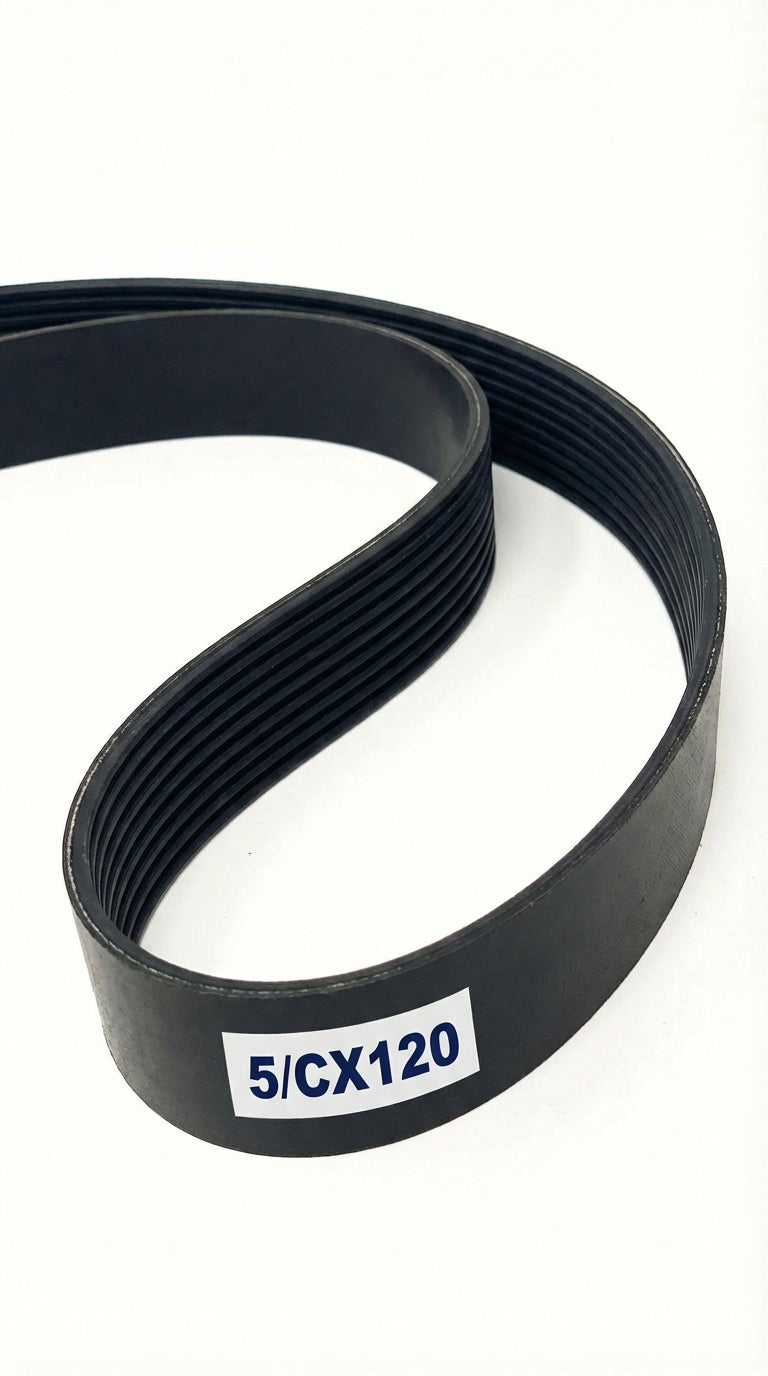

5/CX120

Top Width: 4.495" (114.17mm)
Outside Length: 122.9" (3121.7mm)
Inside Length: 120" (3048mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 5-Band Set

The 5/CX120 is a factory-joined 5-band CX banded belt assembly measuring 4.495" wide x 122.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216804

$455.93

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/CX120
Top Width	4.495 in / 114.17 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	120.0 in / 3048.0 mm
Outside Length	122.9 in / 3121.7 mm
Effective Length	122.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	5
Cogged	Yes
