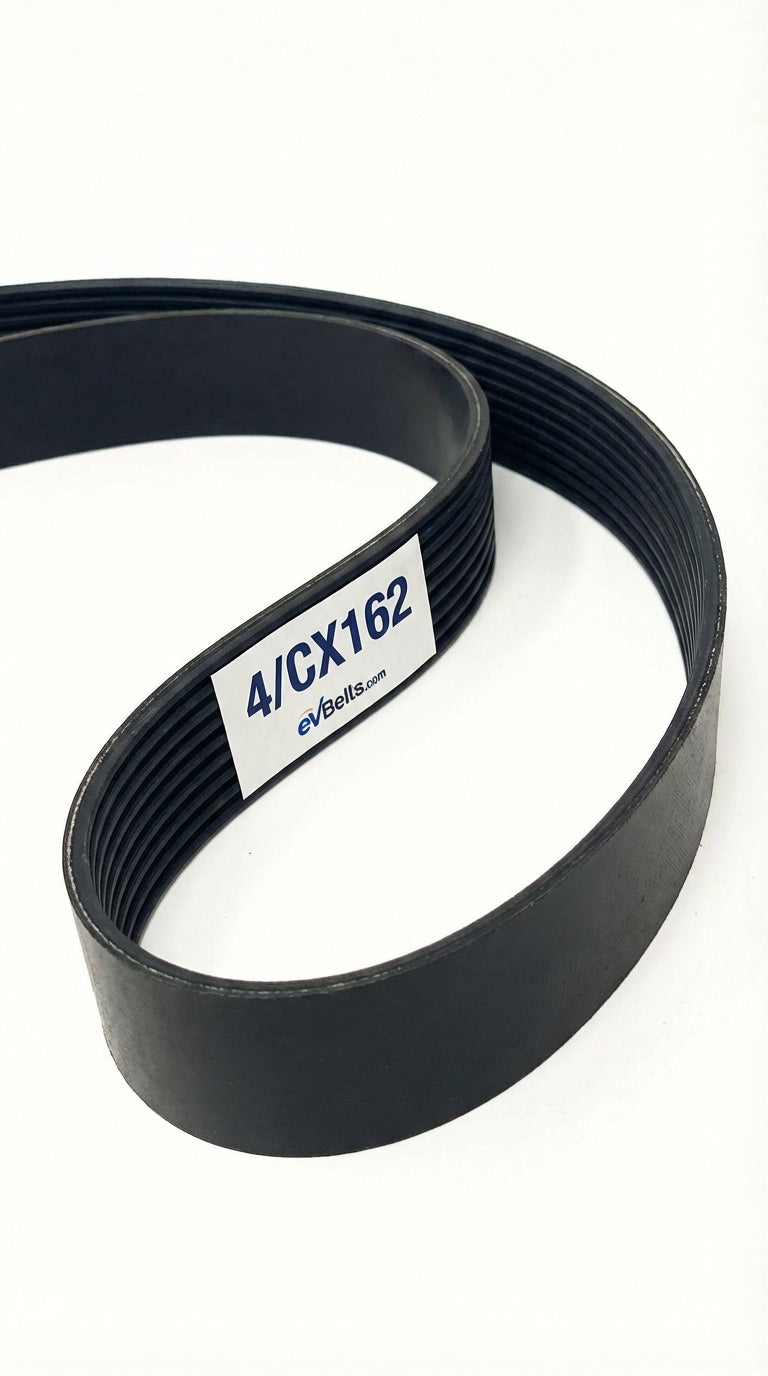

4/CX162

Top Width: 3.59" (91.19mm)
Outside Length: 164.9" (4188.5mm)
Inside Length: 162" (4114.8mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/CX162 is a factory-joined 4-band CX banded belt assembly measuring 3.59" wide x 164.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216794

$467.44

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/CX162
Top Width	3.59 in / 91.19 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	162.0 in / 4114.8 mm
Outside Length	164.9 in / 4188.5 mm
Effective Length	164.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	4
Cogged	Yes
