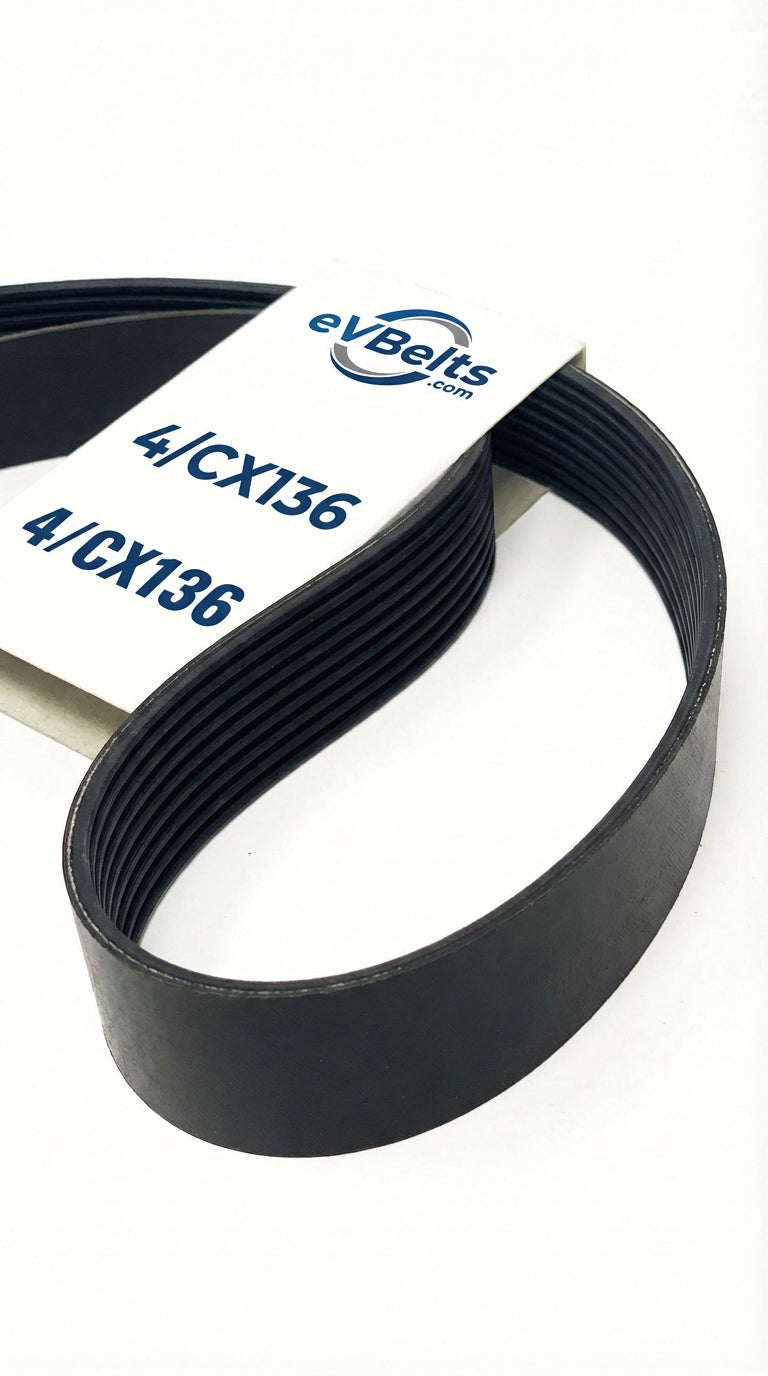

4/CX136

Top Width: 3.59" (91.19mm)
Outside Length: 138.9" (3528.1mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/CX136 is a factory-joined 4-band CX banded belt assembly measuring 3.59" wide x 138.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216792

$319.23

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/CX136
Top Width	3.59 in / 91.19 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	138.9 in / 3528.1 mm
Effective Length	138.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	4
Cogged	Yes
