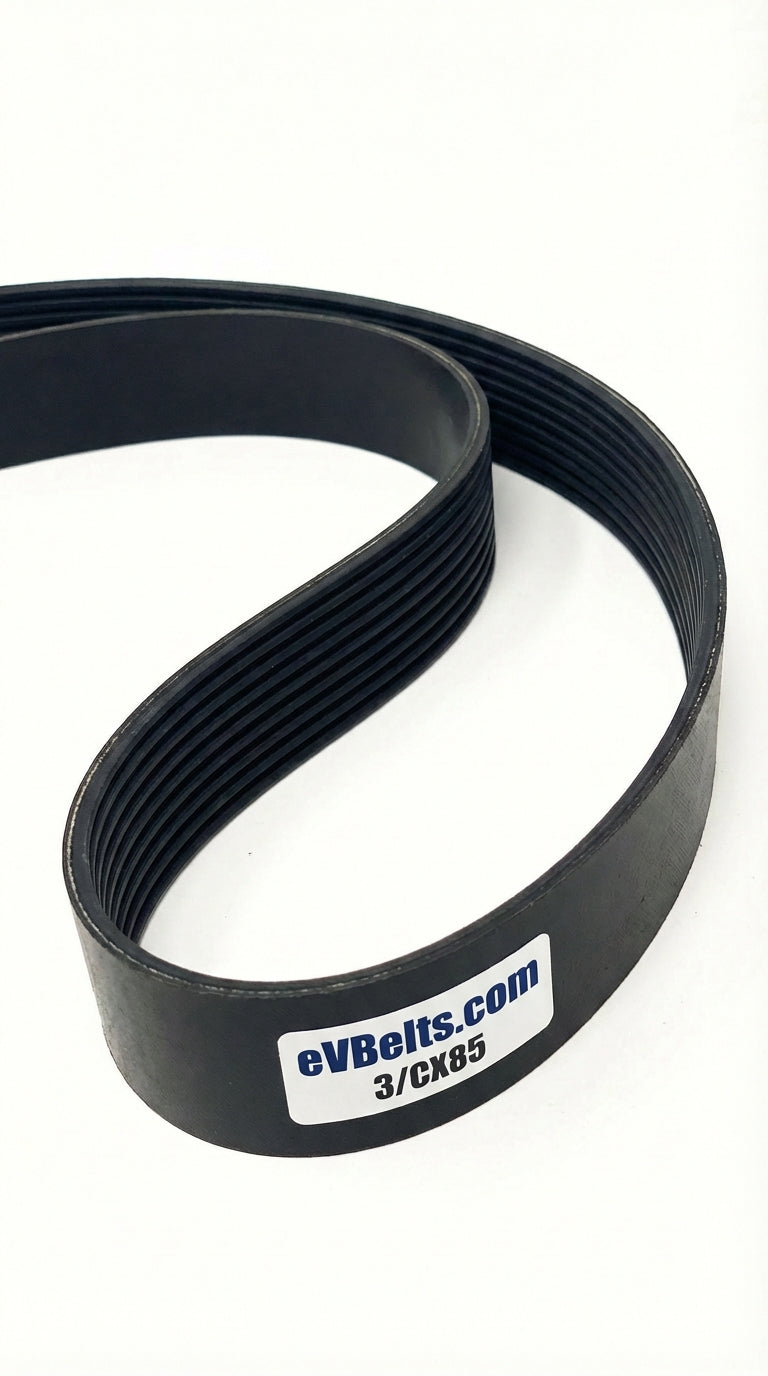

3/CX85

Top Width: 2.685" (68.2mm)
Outside Length: 87.9" (2232.7mm)
Inside Length: 85" (2159mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/CX85 is a factory-joined 3-band CX banded belt assembly measuring 2.685" wide x 87.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216772

$153.00

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/CX85
Top Width	2.685 in / 68.2 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	85.0 in / 2159.0 mm
Outside Length	87.9 in / 2232.7 mm
Effective Length	87.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	3
Cogged	Yes
