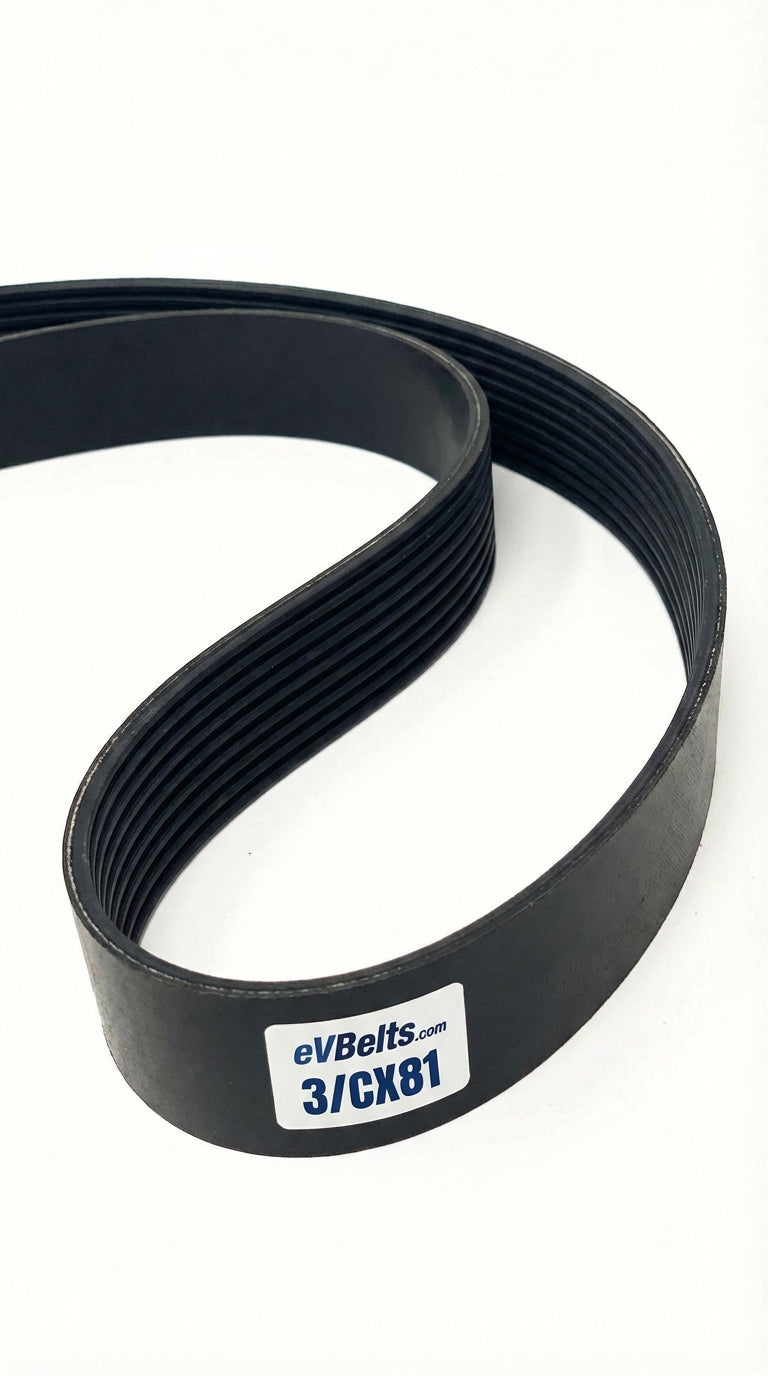

3/CX81

Top Width: 2.685" (68.2mm)
Outside Length: 83.9" (2131.1mm)
Inside Length: 81" (2057.4mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/CX81 is a factory-joined 3-band CX banded belt assembly measuring 2.685" wide x 83.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216771

$155.33

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/CX81
Top Width	2.685 in / 68.2 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	81.0 in / 2057.4 mm
Outside Length	83.9 in / 2131.1 mm
Effective Length	83.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	3
Cogged	Yes
