3/CX144

Top Width: 2.685" (68.2mm)
Outside Length: 146.9" (3731.3mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 3-Band Set

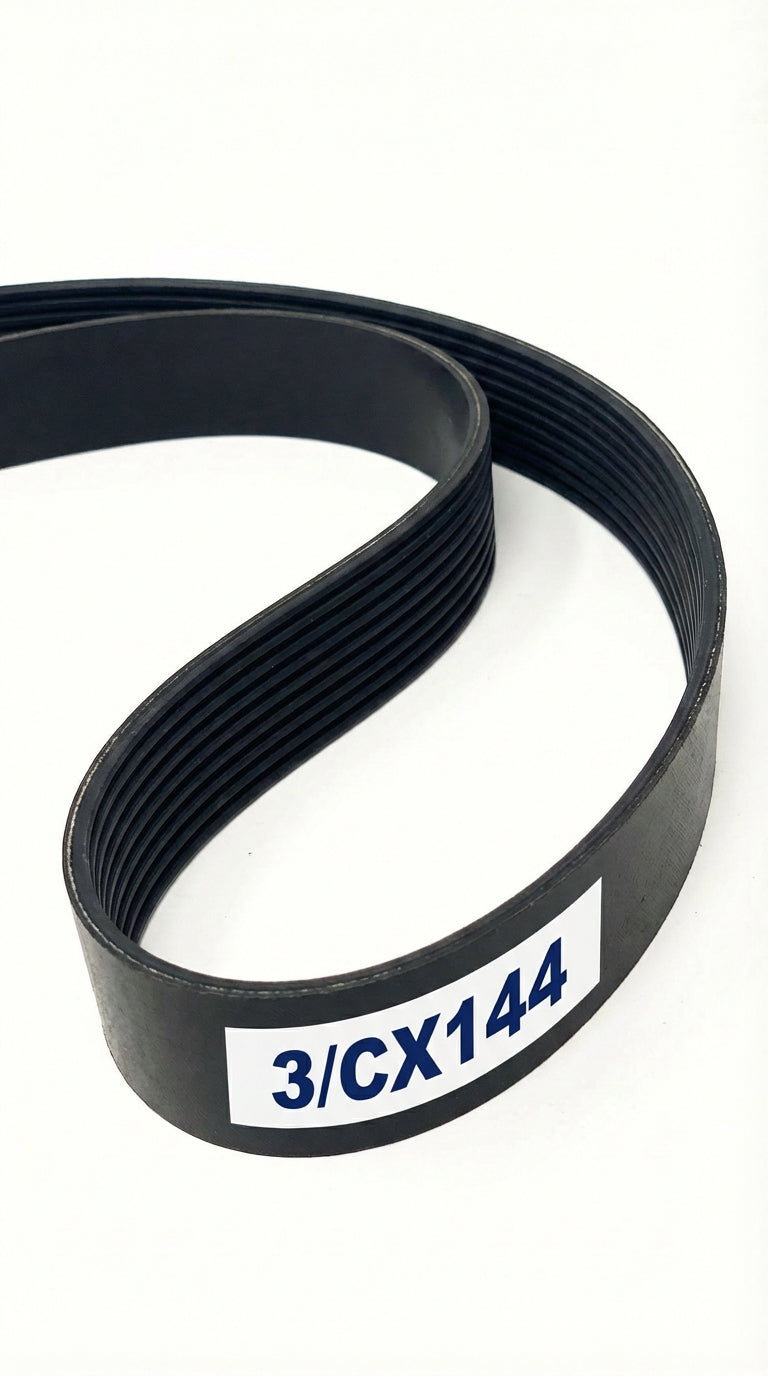

The 3/CX144 is a factory-joined 3-band CX banded belt assembly measuring 2.685" wide x 146.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216780

$261.14

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/CX144
Top Width	2.685 in / 68.2 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	146.9 in / 3731.3 mm
Effective Length	146.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	3
Cogged	Yes
