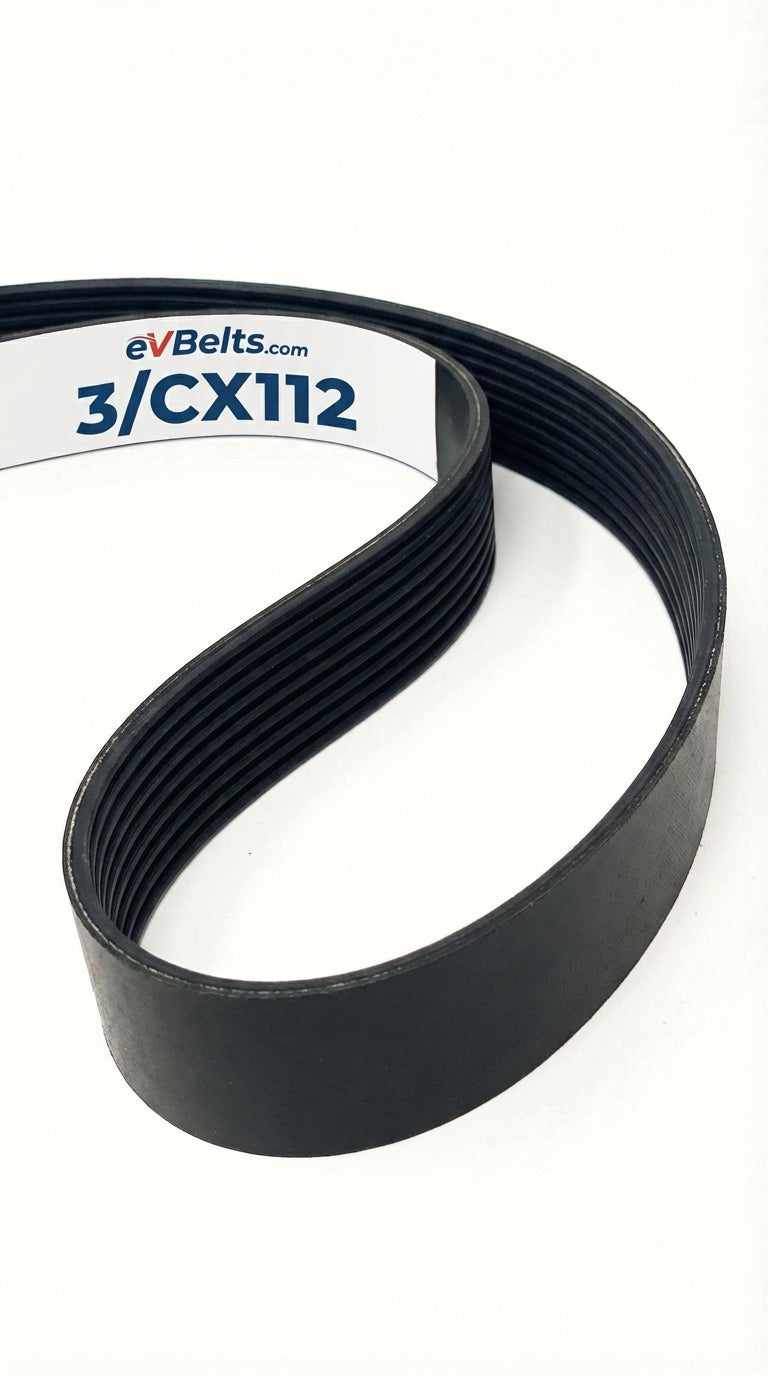

3/CX112

Top Width: 2.685" (68.2mm)
Outside Length: 114.9" (2918.5mm)
Inside Length: 112" (2844.8mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/CX112 is a factory-joined 3-band CX banded belt assembly measuring 2.685" wide x 114.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216778

$212.76

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/CX112
Top Width	2.685 in / 68.2 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	112.0 in / 2844.8 mm
Outside Length	114.9 in / 2918.5 mm
Effective Length	114.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	3
Cogged	Yes
