2/CX90

Top Width: 1.78" (45.21mm)
Outside Length: 92.9" (2359.7mm)
Inside Length: 90" (2286mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 2-Band Set

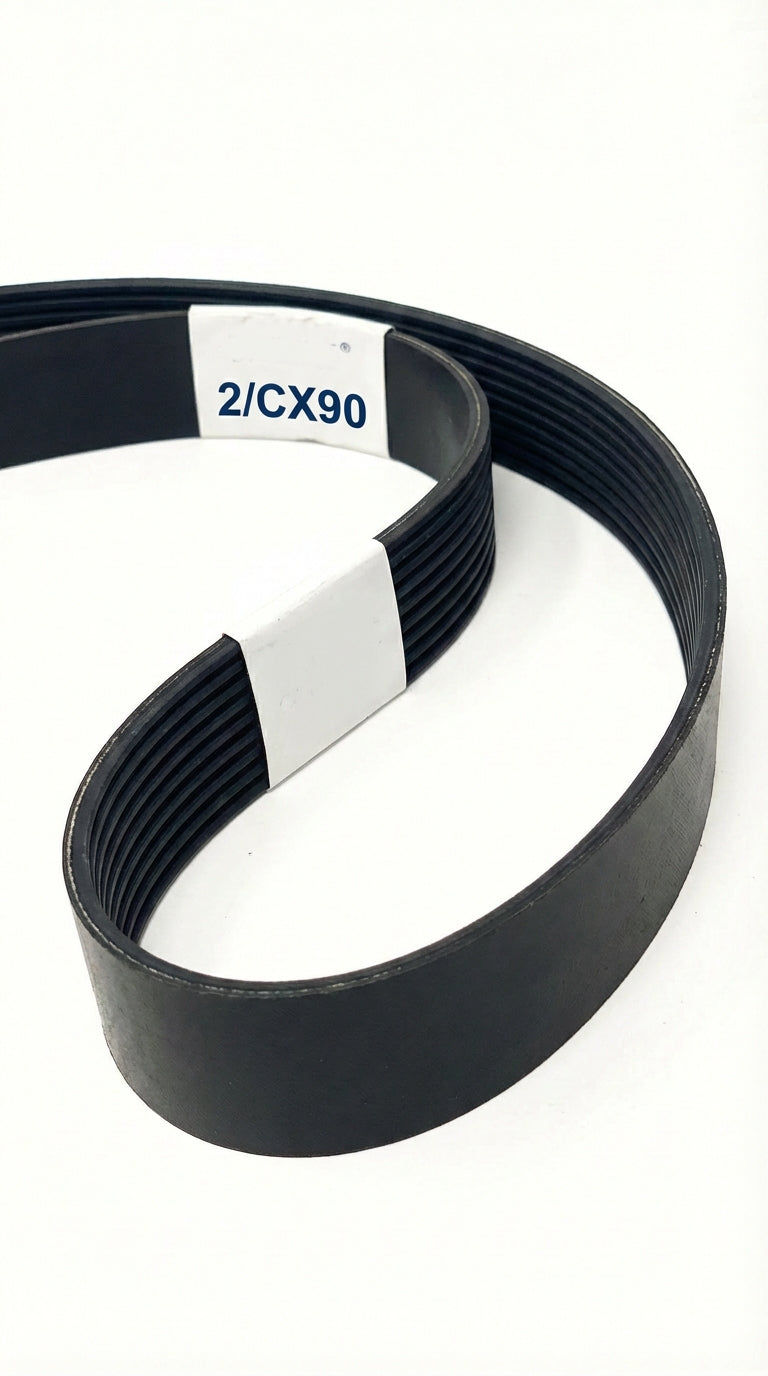

The 2/CX90 is a factory-joined 2-band CX banded belt assembly measuring 1.78" wide x 92.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216760

$114.90

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/CX90
Top Width	1.78 in / 45.21 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	90.0 in / 2286.0 mm
Outside Length	92.9 in / 2359.7 mm
Effective Length	92.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	2
Cogged	Yes
