2/CX75

Top Width: 1.78" (45.21mm)
Outside Length: 77.9" (1978.7mm)
Inside Length: 75" (1905mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 2-Band Set

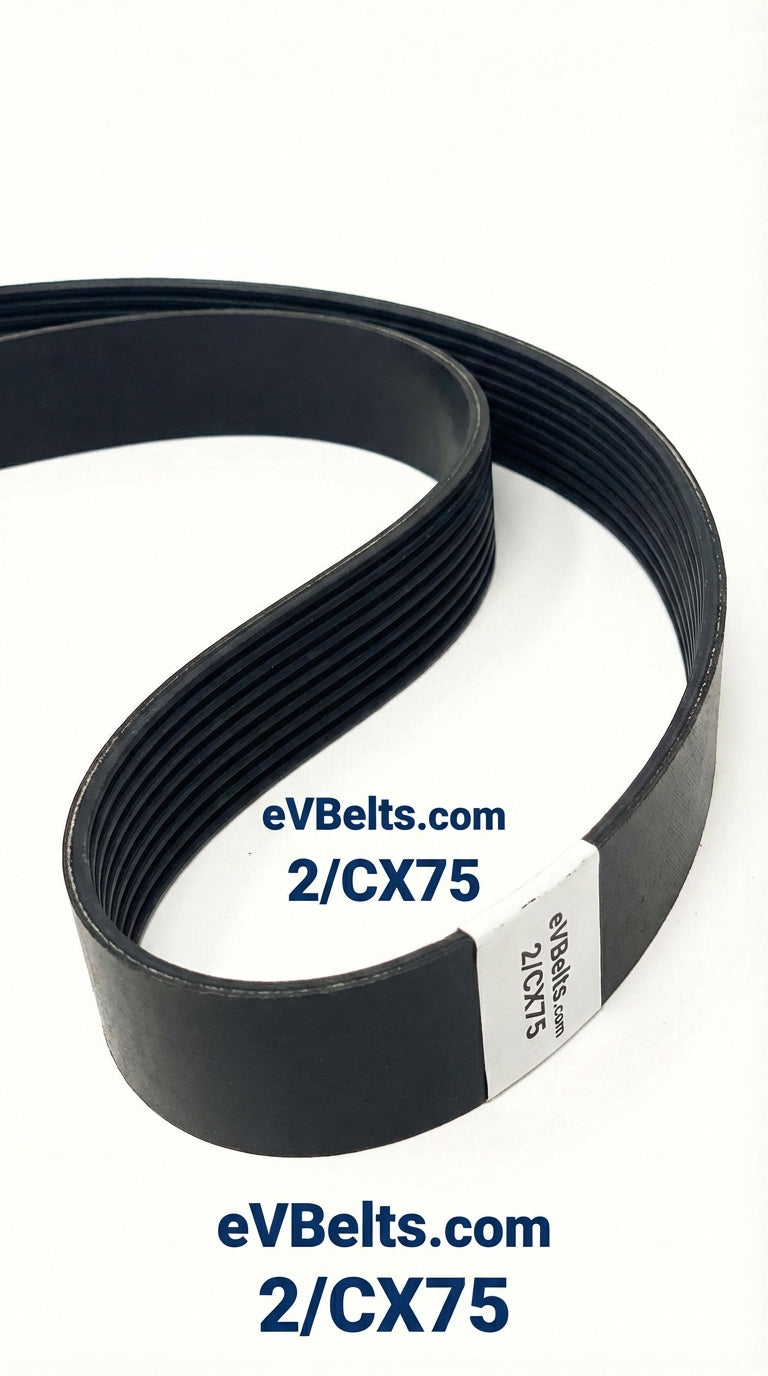

The 2/CX75 is a factory-joined 2-band CX banded belt assembly measuring 1.78" wide x 77.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216757

$109.33

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/CX75
Top Width	1.78 in / 45.21 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	75.0 in / 1905.0 mm
Outside Length	77.9 in / 1978.7 mm
Effective Length	77.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	2
Cogged	Yes
