2/CX136

Top Width: 1.78" (45.21mm)
Outside Length: 138.9" (3528.1mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 2-Band Set

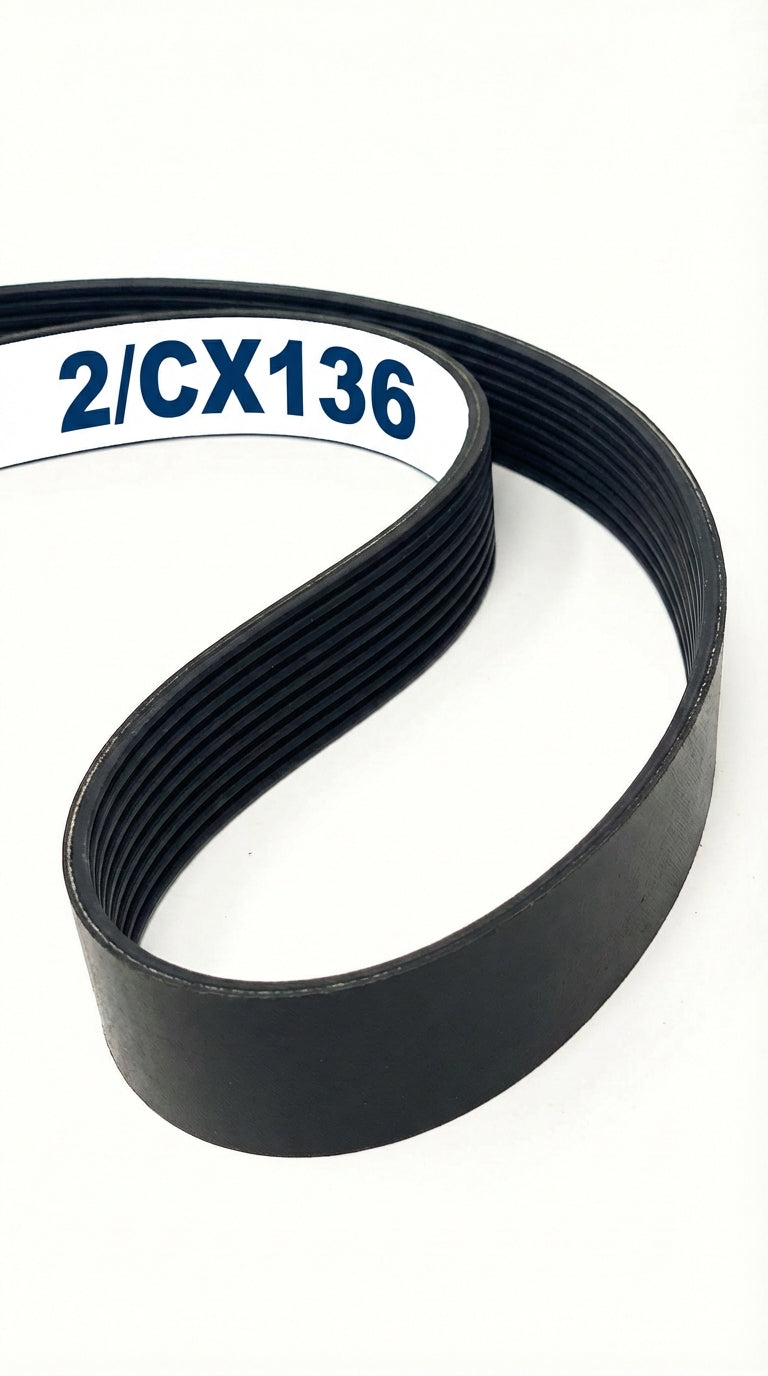

The 2/CX136 is a factory-joined 2-band CX banded belt assembly measuring 1.78" wide x 138.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216765

$159.38

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/CX136
Top Width	1.78 in / 45.21 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	138.9 in / 3528.1 mm
Effective Length	138.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	2
Cogged	Yes
