12/CX90

Top Width: 10.83" (275.08mm)
Outside Length: 92.9" (2359.7mm)
Inside Length: 90" (2286mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 12-Band Set

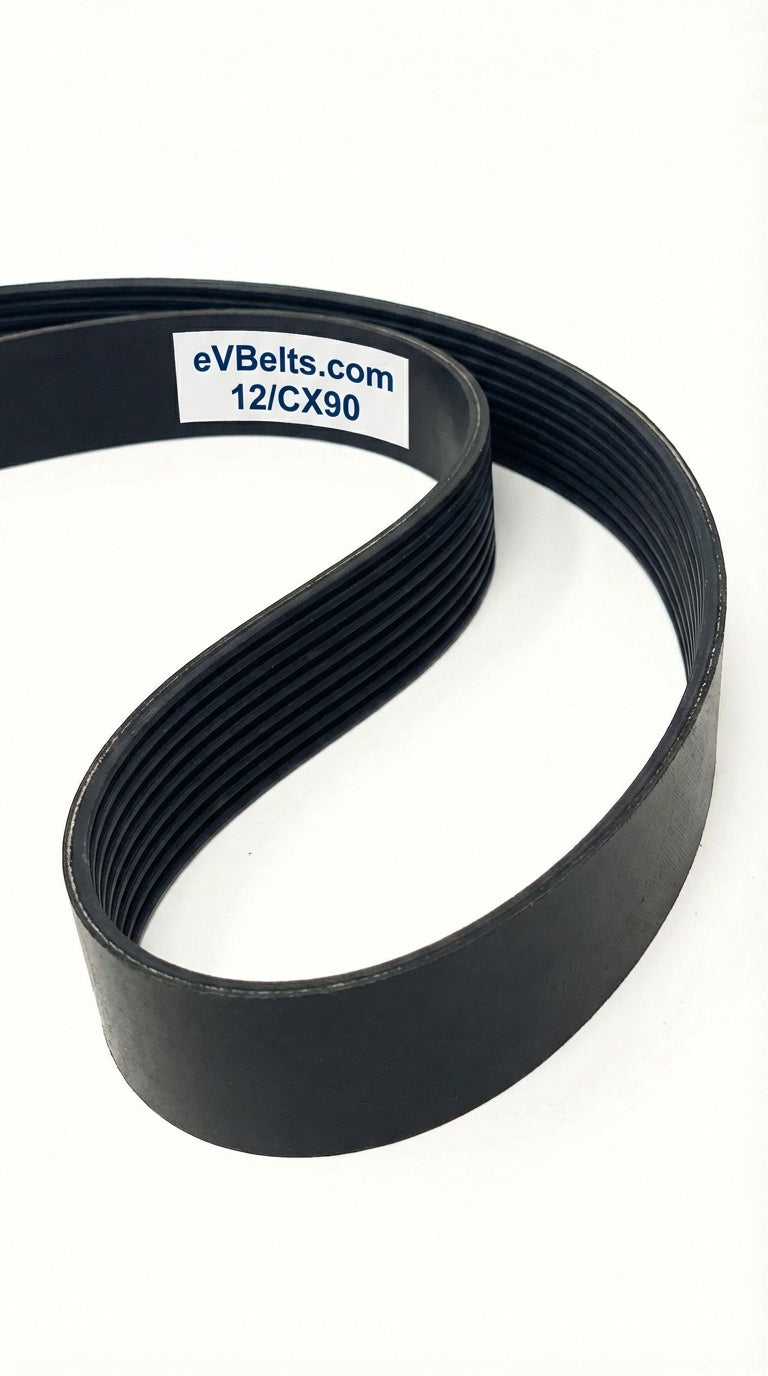

The 12/CX90 is a factory-joined 12-band CX banded belt assembly measuring 10.83" wide x 92.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216747

$827.25

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	12/CX90
Top Width	10.83 in / 275.08 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	90.0 in / 2286.0 mm
Outside Length	92.9 in / 2359.7 mm
Effective Length	92.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	12
Cogged	Yes
