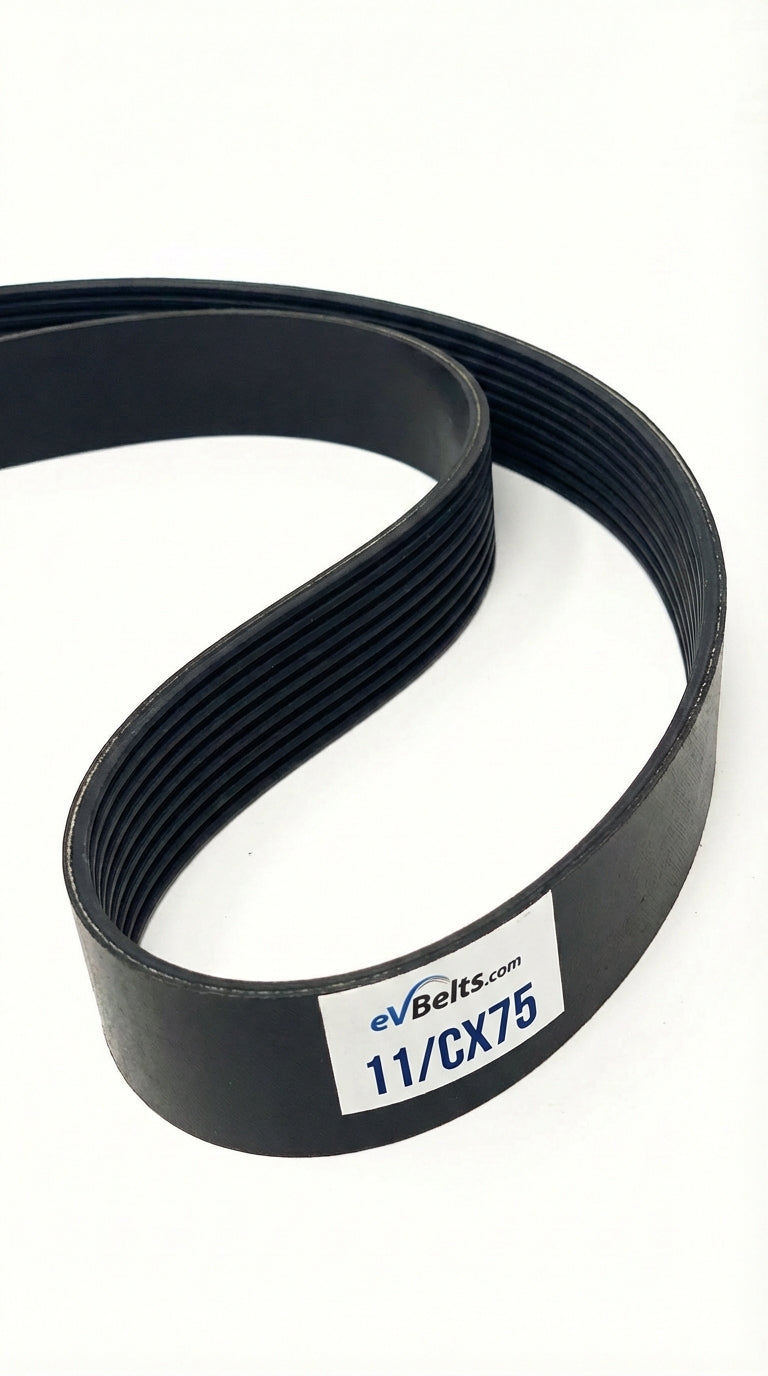

11/CX75

Top Width: 9.925" (252.09mm)
Outside Length: 77.9" (1978.7mm)
Inside Length: 75" (1905mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 11-Band Set

The 11/CX75 is a factory-joined 11-band CX banded belt assembly measuring 9.925" wide x 77.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216731

$601.28

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	11/CX75
Top Width	9.925 in / 252.09 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	75.0 in / 1905.0 mm
Outside Length	77.9 in / 1978.7 mm
Effective Length	77.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	11
Cogged	Yes
