10/CX85

Top Width: 9.02" (229.11mm)
Outside Length: 87.9" (2232.7mm)
Inside Length: 85" (2159mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 10-Band Set

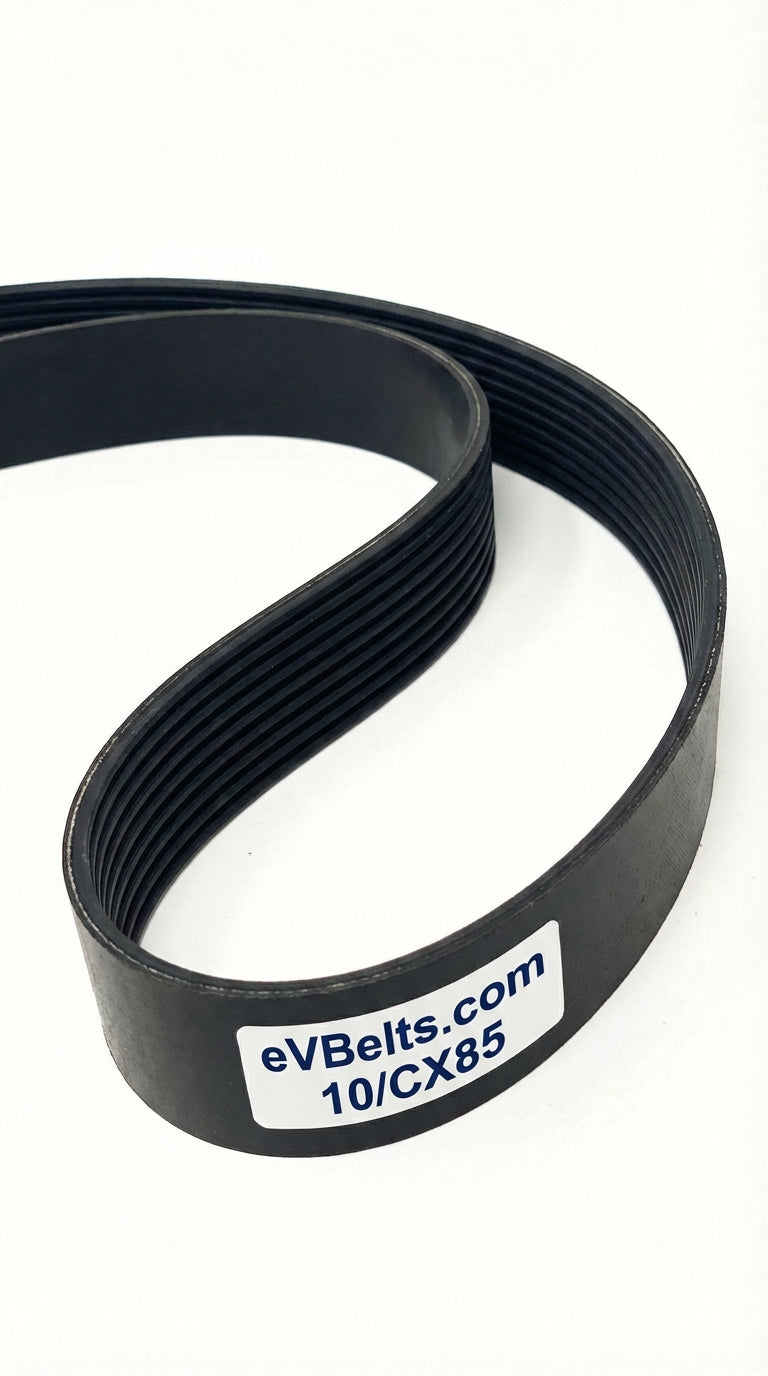

The 10/CX85 is a factory-joined 10-band CX banded belt assembly measuring 9.02" wide x 87.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216720

$612.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/CX85
Top Width	9.02 in / 229.11 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	85.0 in / 2159.0 mm
Outside Length	87.9 in / 2232.7 mm
Effective Length	87.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	10
Cogged	Yes
