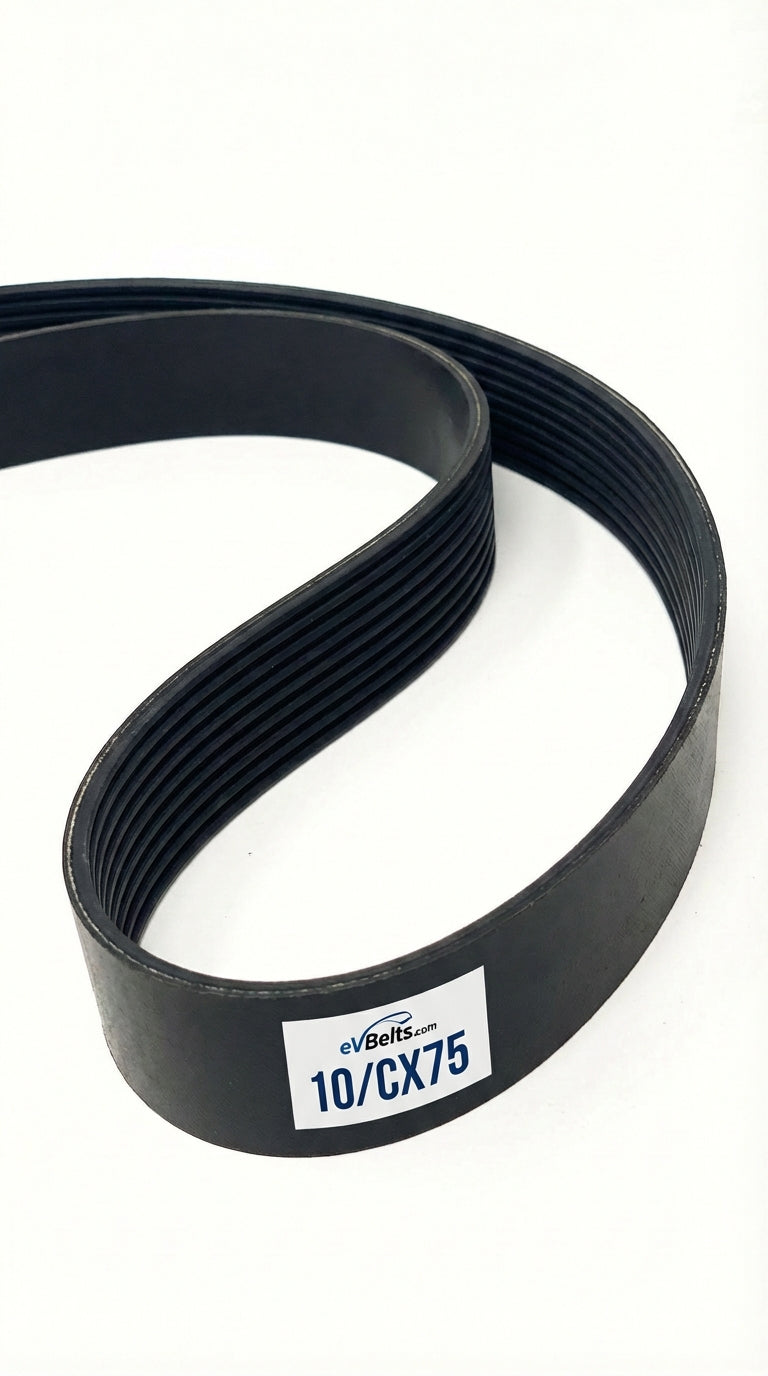

10/CX75

Top Width: 9.02" (229.11mm)
Outside Length: 77.9" (1978.7mm)
Inside Length: 75" (1905mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 10-Band Set

The 10/CX75 is a factory-joined 10-band CX banded belt assembly measuring 9.02" wide x 77.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216717

$546.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/CX75
Top Width	9.02 in / 229.11 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	75.0 in / 1905.0 mm
Outside Length	77.9 in / 1978.7 mm
Effective Length	77.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	10
Cogged	Yes
