10/CX105

Top Width: 9.02" (229.11mm)
Outside Length: 107.9" (2740.7mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 6.5"
Profile: Cogged/Notched
Configuration: 10-Band Set

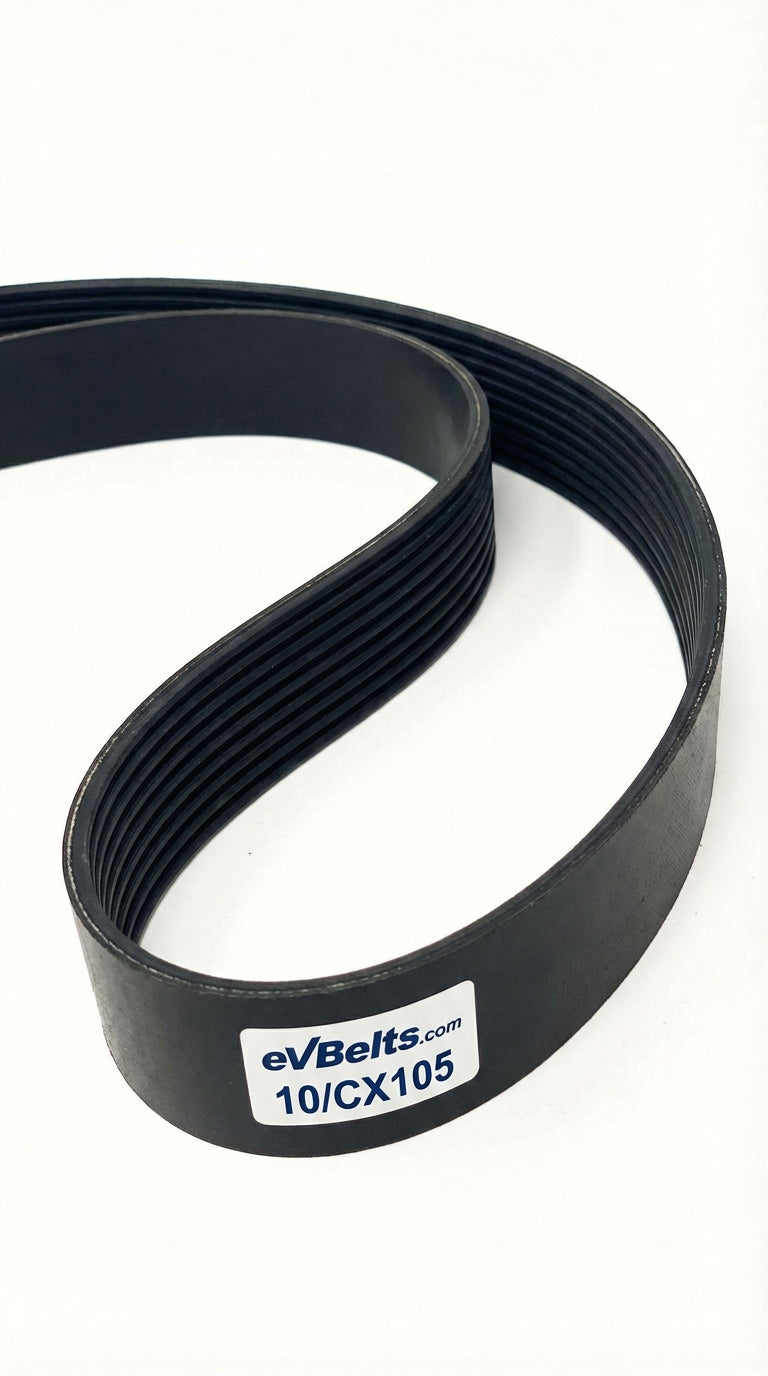

The 10/CX105 is a factory-joined 10-band CX banded belt assembly measuring 9.02" wide x 107.9" long, offering improved flexibility around smaller pulleys.

SKU: 1216723

$768.23

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/CX105
Top Width	9.02 in / 229.11 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	107.9 in / 2740.7 mm
Effective Length	107.2 in
Min Sheave Diameter	6.5 in / 165.1 mm
Ribs	10
Cogged	Yes
