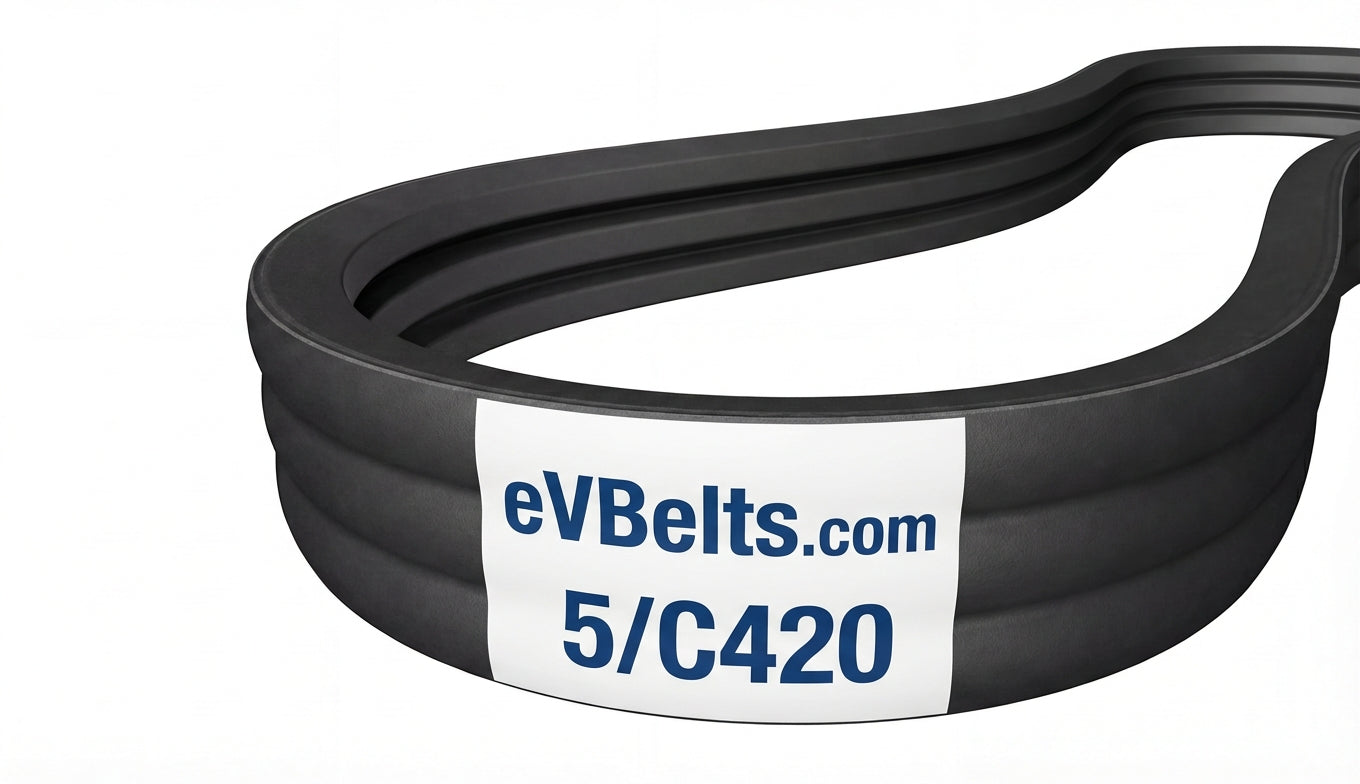

5/C420

Top Width: 4.495" (114.17mm)
Outside Length: 422.9" (10741.7mm)
Inside Length: 420" (10668mm)
Min Pulley Diameter: 9"
Configuration: 5-Band Set

The 5/C420 is a factory-joined 5-band C banded belt assembly measuring 4.495" wide x 422.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215934

$623.12

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	5/C420
Top Width	4.495 in / 114.17 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	420.0 in / 10668.0 mm
Outside Length	422.9 in / 10741.7 mm
Effective Length	422.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	5
