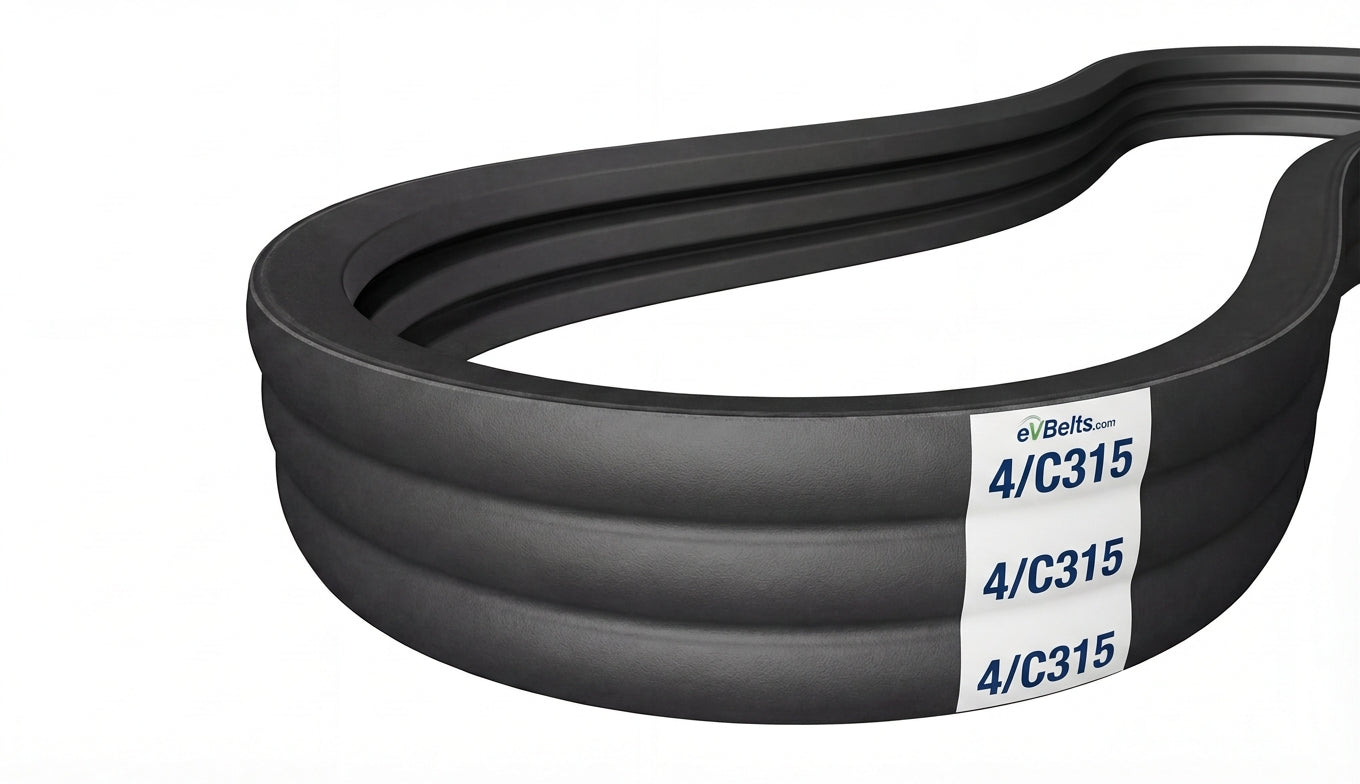

4/C315

Top Width: 3.59" (91.19mm)
Outside Length: 317.9" (8074.7mm)
Inside Length: 315" (8001mm)
Min Pulley Diameter: 9"
Configuration: 4-Band Set

The 4/C315 is a factory-joined 4-band C banded belt assembly measuring 3.59" wide x 317.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215882

$317.67

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	4/C315
Top Width	3.59 in / 91.19 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	315.0 in / 8001.0 mm
Outside Length	317.9 in / 8074.7 mm
Effective Length	317.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	4
