3/C204

Top Width: 2.685" (68.2mm)
Outside Length: 206.9" (5255.3mm)
Inside Length: 204" (5181.6mm)
Min Pulley Diameter: 9"
Configuration: 3-Band Set

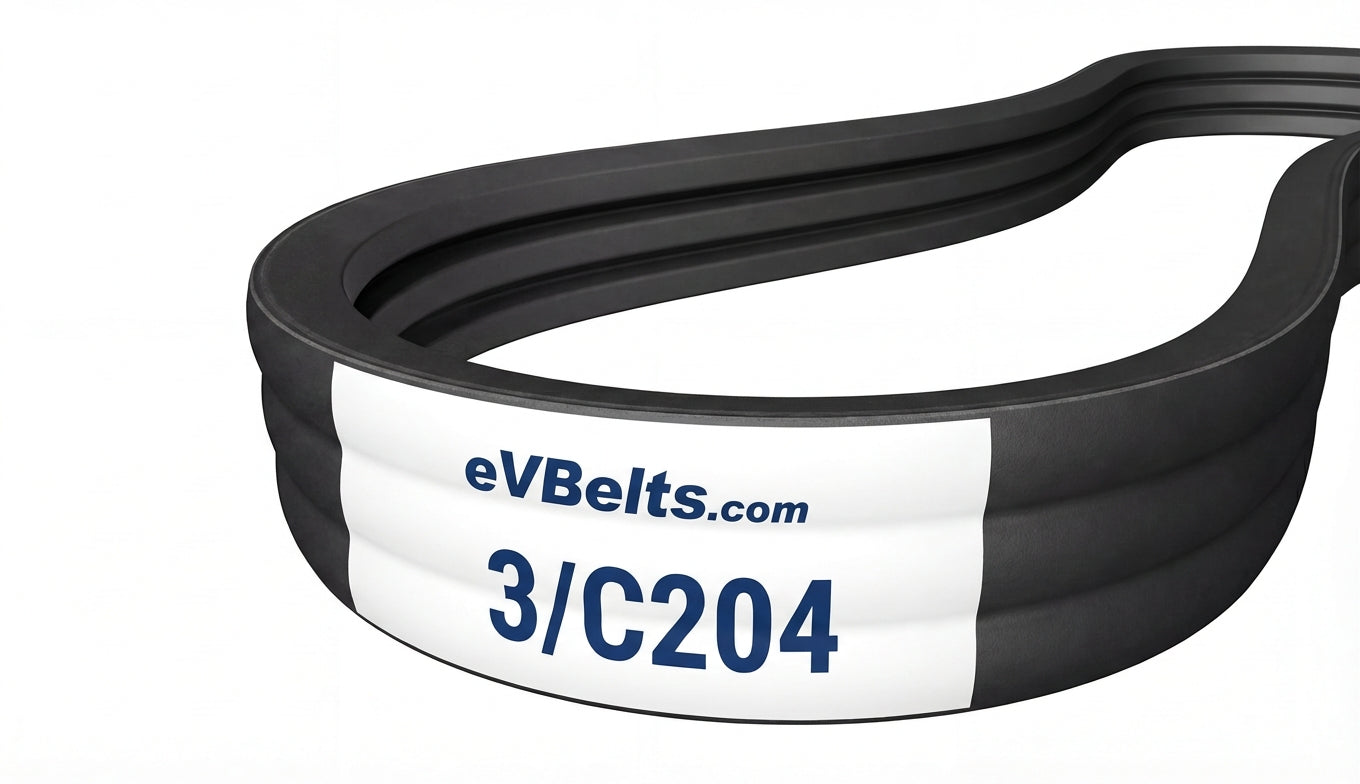

The 3/C204 is a factory-joined 3-band C banded belt assembly measuring 2.685" wide x 206.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215825

$202.91

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/C204
Top Width	2.685 in / 68.2 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	204.0 in / 5181.6 mm
Outside Length	206.9 in / 5255.3 mm
Effective Length	206.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	3
