3/C126

Top Width: 2.685" (68.2mm)
Outside Length: 128.9" (3274.1mm)
Inside Length: 126" (3200.4mm)
Min Pulley Diameter: 9"
Configuration: 3-Band Set

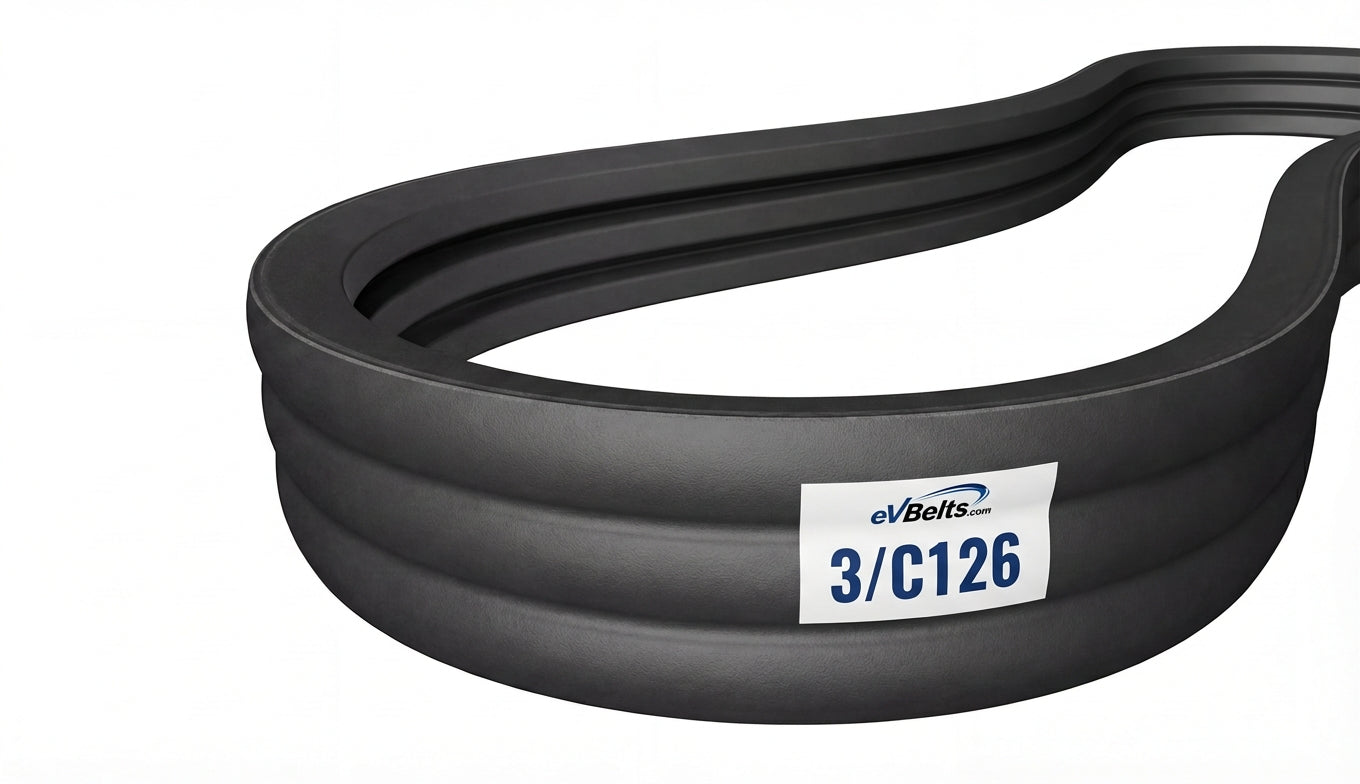

The 3/C126 is a factory-joined 3-band C banded belt assembly measuring 2.685" wide x 128.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215814

$108.96

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/C126
Top Width	2.685 in / 68.2 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	126.0 in / 3200.4 mm
Outside Length	128.9 in / 3274.1 mm
Effective Length	128.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	3
